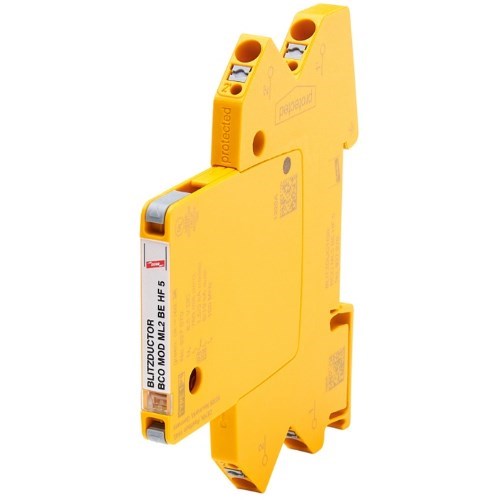

DEHN BCOML2BEHF5 Modular Arrester 3kA 1.5kA 0.75A 6/8VAC/DC Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOML2BEHF5

  • Protects signal lines with IP20 rating
  • Easy push-in connection on 35mm DIN rail
  • Operates in extreme temps: -40 to 80°C
  • Complies with IEC, UL, CSA & ATEX standards
  • Handles lightning impulse up to 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines of high-frequency transmissions sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
5V
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
6.0 V AC / 8.5 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
