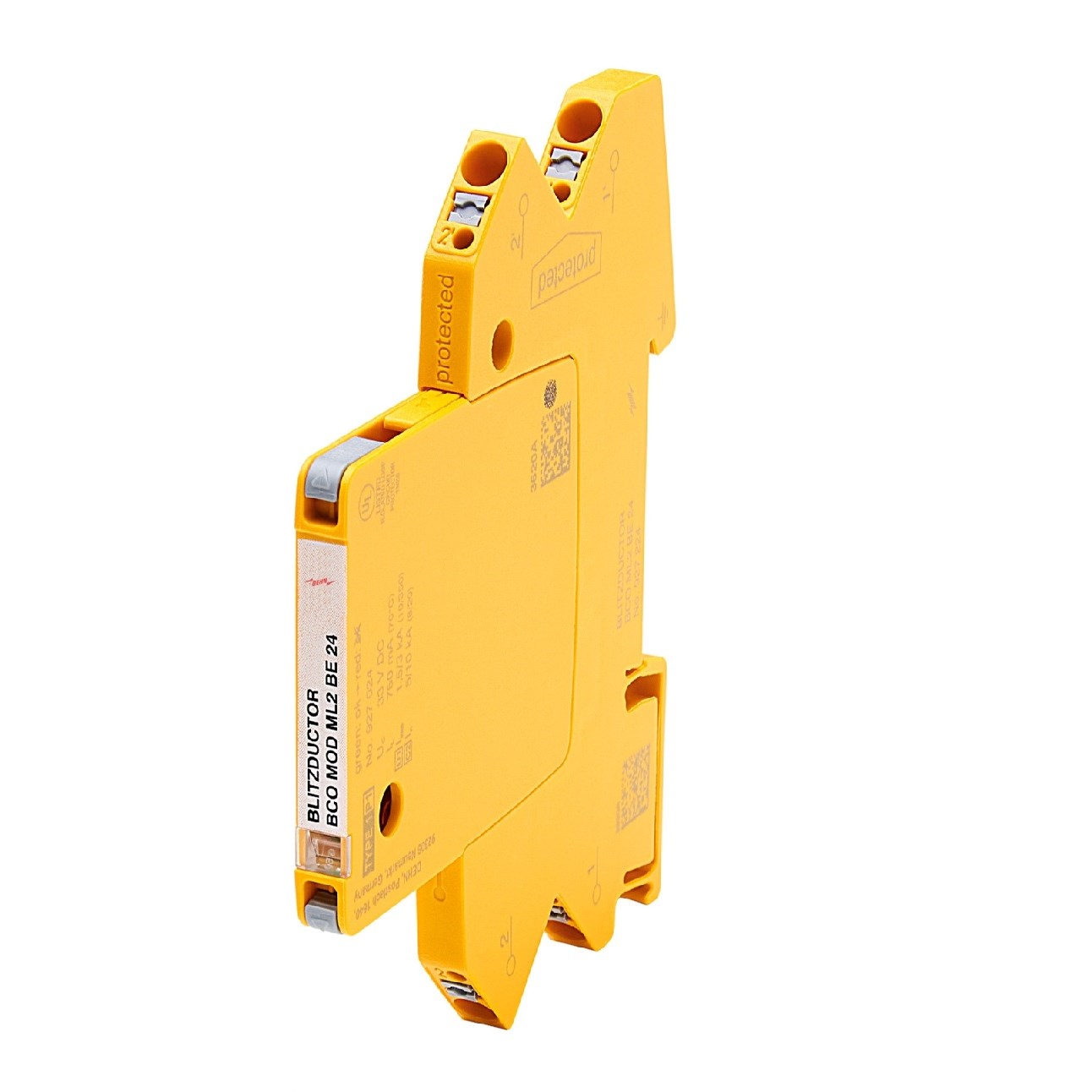

DEHN BCOML2BE24 Modular Arrester 3kA 1.5kA 0.75A 23.3/33VAC/DC Push-In 35mm DIN Rail 89.7mm L IP20

Product Code: BCOML2BE24

  • Protects signal lines with 23.3/33 VAC/VDC voltage
  • Compact design fits 35 mm DIN Rail
  • Operates in extreme temps: -40 to 80°C
  • Meets IEC, UL, CSA, ATEX, and SIL standards
  • Push-in connection for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
24V
Voltage Protection Level Up
85V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
23.3 V AC / 33 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
