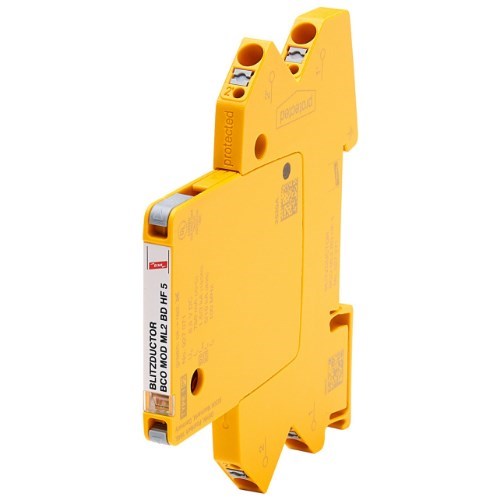

DEHN BCOML2BDHF5 Modular Arrester 3kA 1.5kA 0.75A 6/8.5VAC/DC Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOML2BDHF5

  • Protects signal lines up to 0.75 A
  • Compact size: 69.4 mm wide, 6 mm deep
  • Operates in -40 to 80°C range
  • Easy push-in connection on DIN rail
  • Compliant with IEC, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of unearthed high-frequency bus systems as well as balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
750 mA
Nominal Voltage
5V
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
6.0 V AC / 8.5 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
