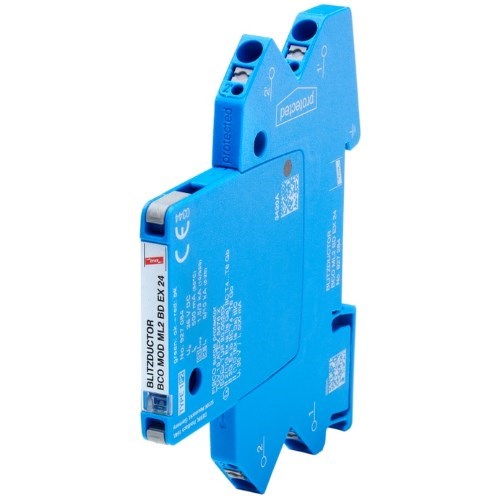

DEHN BCOML2BDEX24 Modular Arrester 3kA 1.5kA 0.5A 25.4/36VAC/DC Push-In 35mm DIN Rail 89.7mm H

Product Code: BCOML2BDEX24

  • Rated for 25.4/36 VAC/VDC, 0.5 A
  • Push-In connection on 35 mm DIN Rail
  • IP20 protection, polyamide material
  • Operational temp: -40 to 80°C
  • Complies with IEC, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of intrinsically safe measuring circuits and bus systems

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
500 mA
Nominal Voltage
24V
Voltage Protection Level Up
48V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
25.4 V AC / 36 V DC

Mechanical

Terminal Size
0.08 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
