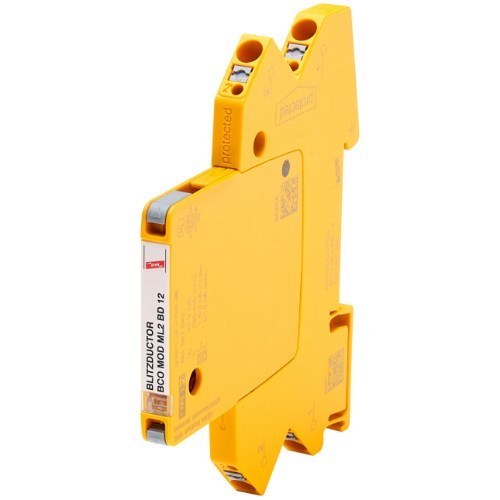

DEHN BCOML2BD12 Modular Arrester 3kA 1.5kA 0.75A 10.6/15VAC/DC Push-In 35mm DIN Rail 89.7mm L IP20

Product Code: BCOML2BD12

  • Signal line protector for 1 pair Blitzductor
  • Push-in connection, easy DIN rail mounting
  • IP20 protection, compact yellow design
  • Operates between -40 to 80°C
  • Complies with IEC, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of unearthed balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
750 mA
Nominal Voltage
12V
Voltage Protection Level Up
20V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
10.6 V AC / 15 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
