Products

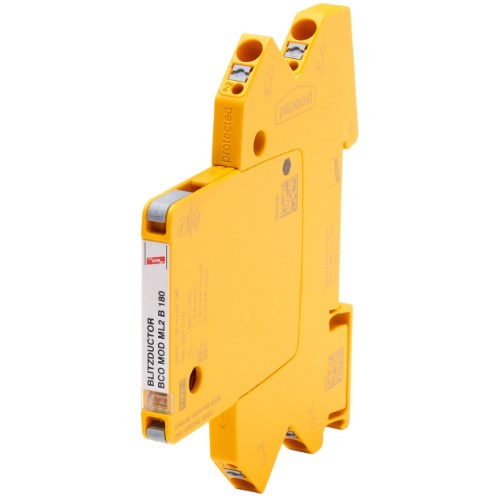

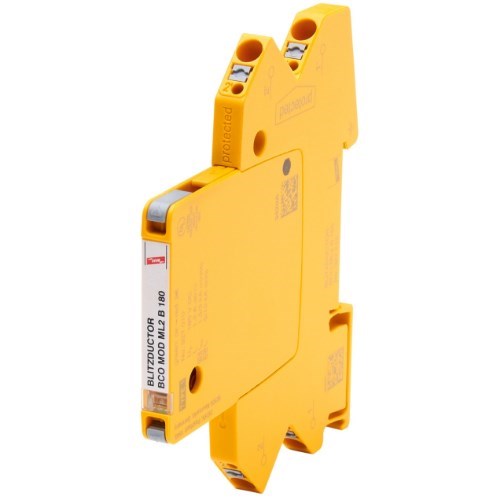

DEHN BCOML2B180 Modular Arrester 3kA 1.5kA 1.2A 127/180VAC/DC Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOML2B180

  • Protects signal lines from surges and impulses
  • Rated for 127/180 VAC/VDC, 1.2 A current
  • Compact size: 69.4 mm width, fits 35 mm DIN rail
  • Operates in extreme temps: -40 to 80°C
  • Complies with IEC, UL, CSA, ATEX standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lightning Current Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
1.2 A
Nominal Voltage
180V
Voltage Protection Level Up
950V
Max. Discharge Current Imax (8/20µs)
10kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
127 V AC / 180 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
