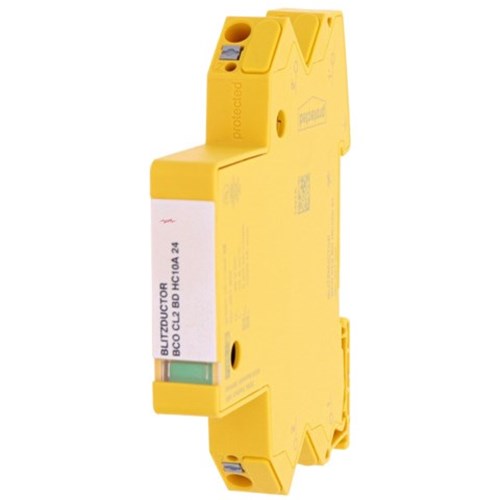

DEHN BCOCL2HC10A24 Compact Combined Arrester 5kA 20kA 31.8VAC 2Hz Push-In 9mm W 2mm D 10mm H Polyamide Yellow IP20

Product Code: BCOCL2HC10A24

  • Surge protection up to 20 kA
  • Compact design: 9 mm width
  • Easy push-in connection
  • Operates from -40 to 80°C
  • DIN rail pluggable installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair in unearthed DC supplies for IT systems and measuring and control circuits

Electrical

Lightning Impulse Current Iimp (10/350µs)
5 kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
10:00 AM
Nominal Voltage
24 V
Voltage Protection Level Up
800 V
Nominal Discharge Current Inom (8/20µs)
20 kA
Max. Continuous Operating Voltage
31.8 V AC / 45 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
