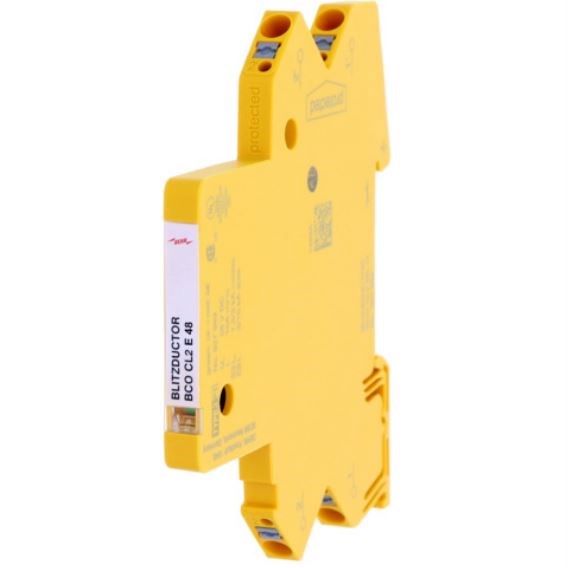

DEHN BCOCL2E48 Compact Arrester 6A 10A 41/58VAC/DC 2.5MHz Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOCL2E48

  • Protects signal lines up to 58 VAC/VDC
  • Compact design: 6 mm depth
  • Easy push-in connection on DIN rail
  • Wide temp range: -40 to 80°C
  • Complies with IEC, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single cores sharing a common reference potential as well as unbalanced interfaces

Electrical

No. of Lines/Pairs
2 single lines
Nominal Current (In)
6:00 AM
Nominal Voltage
48 V
Voltage Protection Level Up
145 V
Max. Discharge Current Imax (8/20µs)
20 kA
Max. Continuous Operating Voltage
41 V AC / 58 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6 mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
