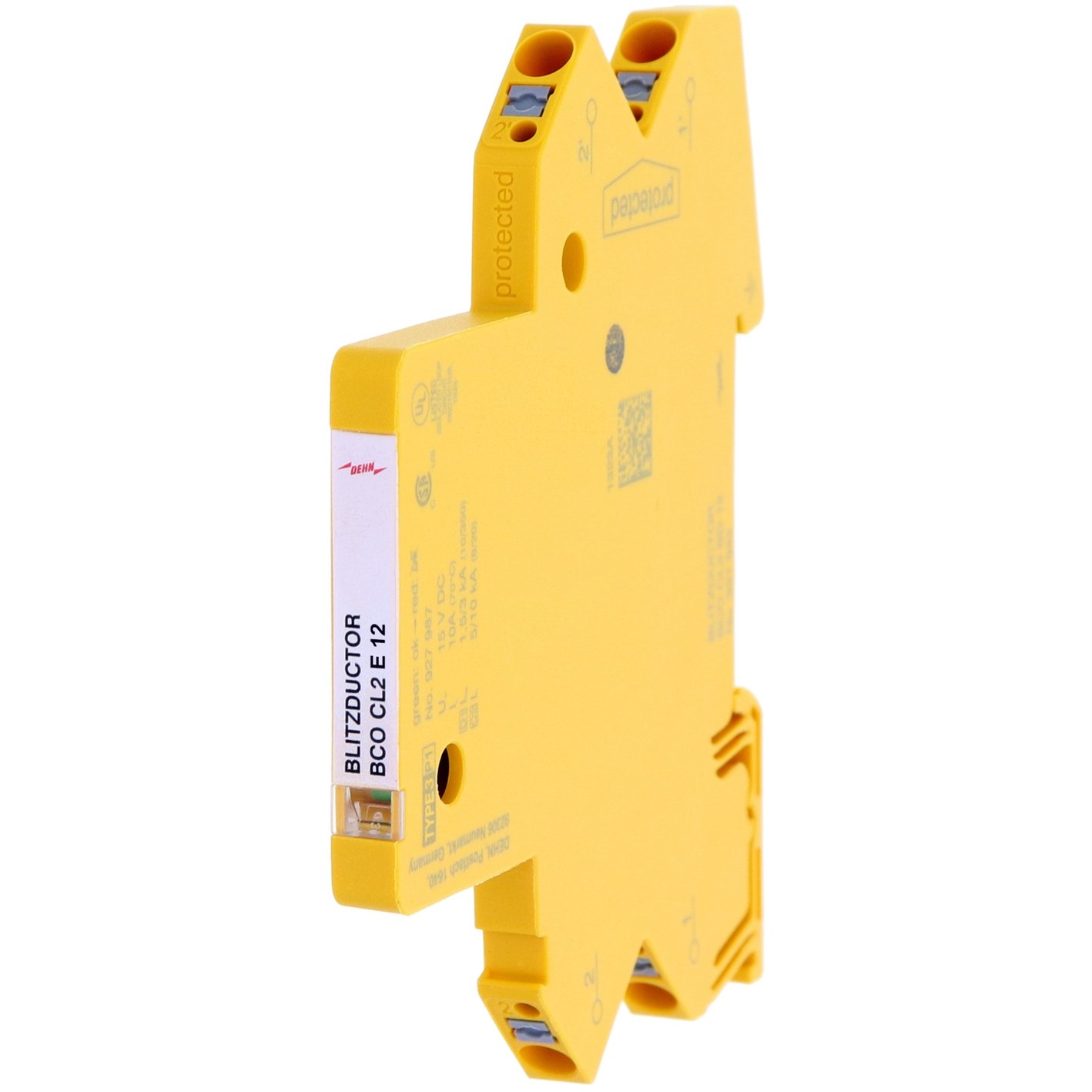

DEHN BCOCL2E12 Compact Arrester 6A 10A 10.6/15VAC/DC 0.6MHz Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOCL2E12

  • Protects signal lines with SPD Class Type 3
  • Compact design: 69.4 mm W x 89.7 mm H x 6 mm D
  • Push-In connection for easy installation
  • Operates in extreme temps: -40 to 80°C
  • Meets IEC, UL, CSA, ATEX, IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single cores sharing a common reference potential as well as unbalanced interfaces

Electrical

No. of Lines/Pairs
2 single lines
Nominal Current (In)
6:00 AM
Nominal Voltage
12 V
Voltage Protection Level Up
44 V
Max. Discharge Current Imax (8/20µs)
20 kA
Max. Continuous Operating Voltage
10.6 V AC / 15 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6 mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
