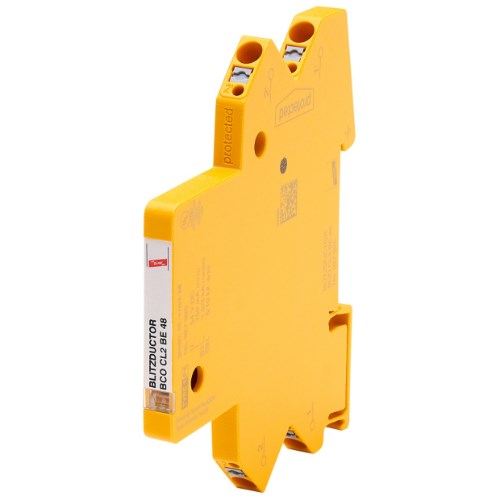

DEHN BCOCL2BE48 Compact Arrester 3kA 1.5kA 0.75A 38.1/54VAC/DC 5MHz Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOCL2BE48

  • Protects signal lines up to 38.1/54 VAC/VDC
  • Compact design: 69.4mm wide, 6mm deep
  • Easy push-in connection on DIN rail
  • High protection with IP20 rating
  • Suitable for Blitzductor Connect systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
48V
Voltage Protection Level Up
130V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
38.1 V AC / 54 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
