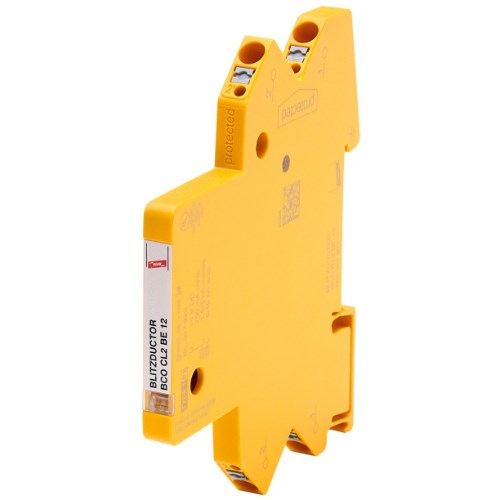

DEHN BCOCL2BE12 Compact Arrester 3kA 1.5kA 0.75A 10.6/15VAC/DC 1.4MHz Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOCL2BE12

  • Protects signal lines with 10.6/15 VAC/VDC
  • Push-in connection for easy setup
  • Compact 6 mm width, DIN rail mountable
  • Operates in -40 to 80°C temperature range
  • Complies with IEC, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
12V
Voltage Protection Level Up
38V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
10.6 V AC / 15 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
