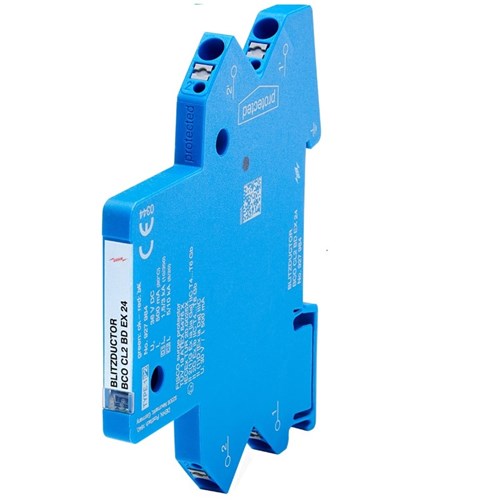

DEHN BCOCL2BDEX24 Compact Arrester 3kA 1.5kA 0.5A 25.4/36VAC/DC 3.5MHz Push-In 35mm DIN Rail 89.7mm H

Product Code: BCOCL2BDEX24

  • Protects signal lines with Type 1 SPD
  • Operates at -40 to 80°C for diverse climates
  • Push-in connection for easy installation
  • Fits on standard 35 mm DIN Rail
  • Complies with IEC, UL, CSA, ATEX standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of intrinsically safe unearthed balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
500 mA
Nominal Voltage
24V
Voltage Protection Level Up
48V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
25.4 V AC / 36 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
