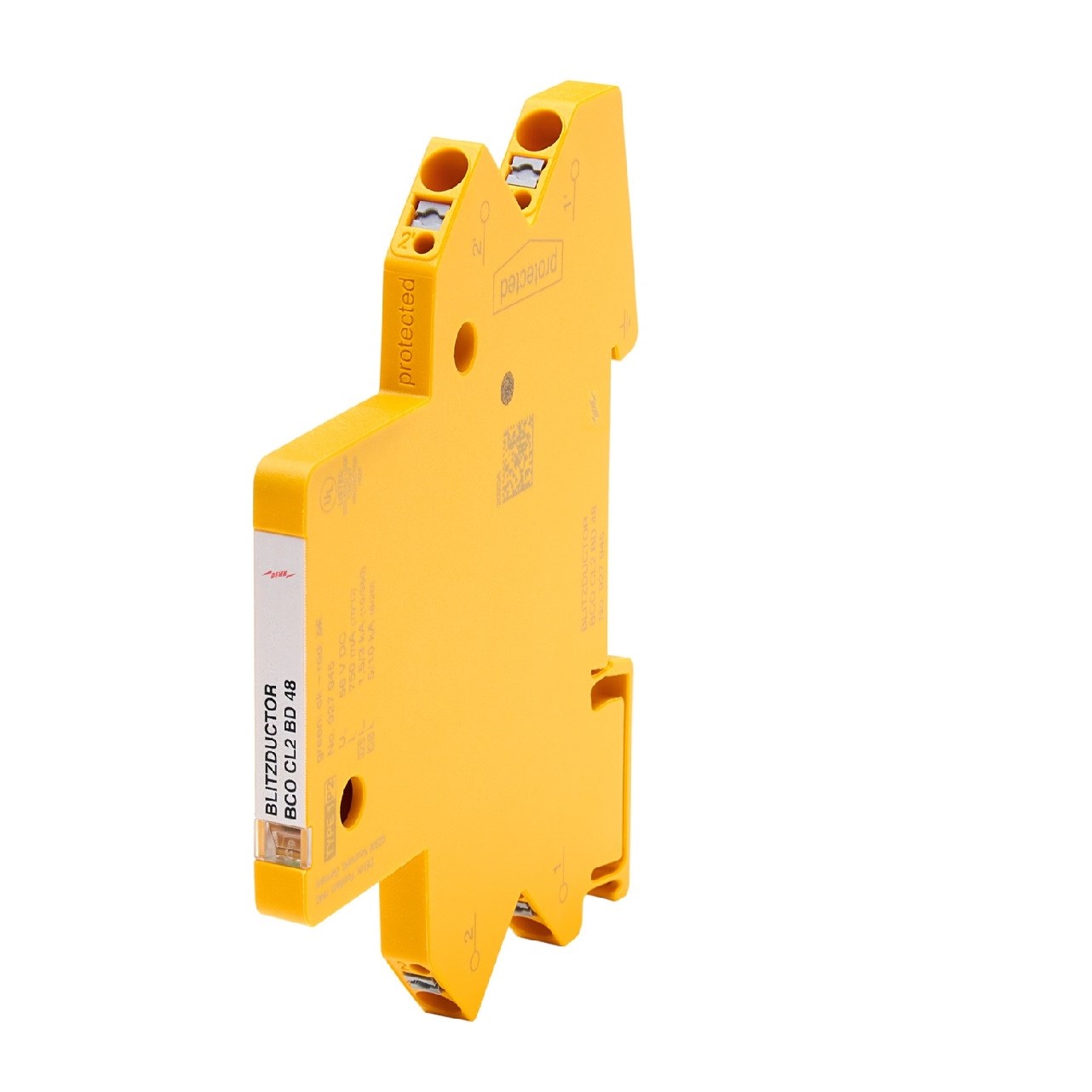

DEHN BCOCL2BD48 Compact Arrester 3kA 1.5kA 0.75A 39.6/56VAC/DC 7.2MHz Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOCL2BD48

  • Protects signal lines up to 56 VAC/VDC
  • Compact design: 6 mm depth
  • Easy push-in connection on DIN rail
  • Operates in -40 to 80°C environments
  • Meets IEC, UL, CSA, ATEX standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of unearthed balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
750 mA
Nominal Voltage
48V
Voltage Protection Level Up
70V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
39.6 V AC / 56 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
