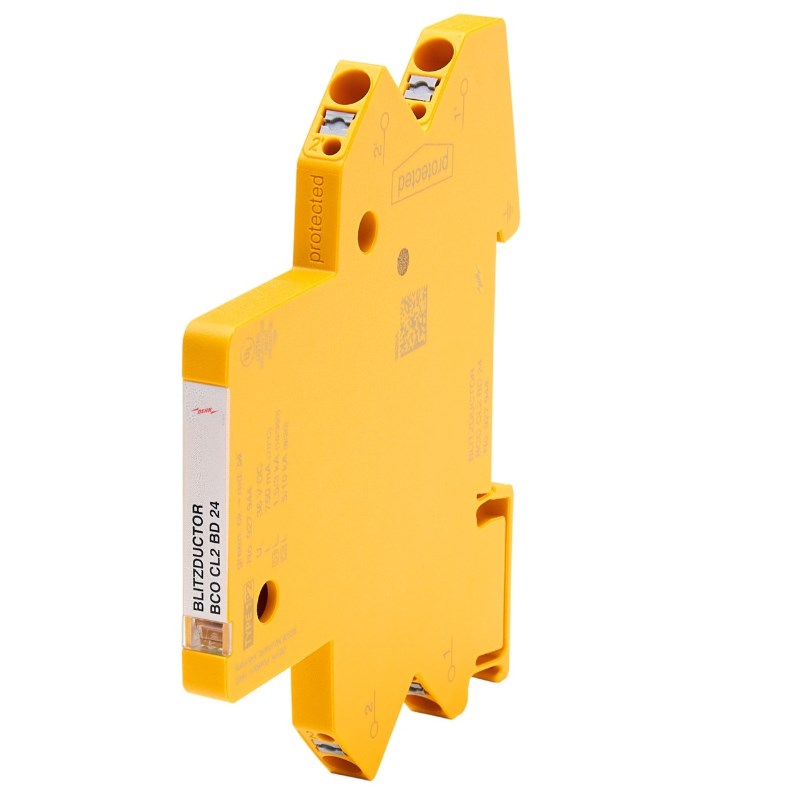

DEHN BCOCL2BD24 Compact Arrester 3kA 1.5kA 0.75A 25.4/36VAC/DC 5.8MHz Push-In 35mm DIN Rail 89.7mm H IP20

Product Code: BCOCL2BD24

  • Protects signal lines up to 25.4/36 VAC/VDC
  • Compact design: 6 mm depth, fits 35 mm DIN rail
  • Push-in connection for easy installation
  • Operates in -40 to 80°C temperature range
  • Complies with IEC, UL, CSA, ATEX standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of unearthed balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
750 mA
Nominal Voltage
24V
Voltage Protection Level Up
46V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
25.4 V AC / 36 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
