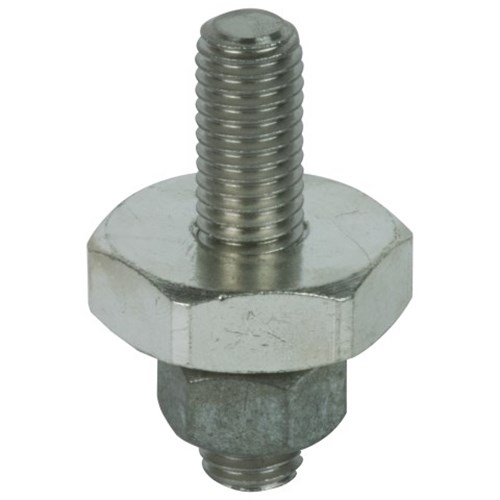

DEHN ASSCHRM1255 Bolted-Type Connector With M12 Bolt and Nut 29.6A 32mm Stud Bolt M12x55mm SS

Product Code: ASSCHRM1255

  • Compatible with earthing rods
  • Made from durable stainless steel
  • Tin coated copper for enhanced conductivity
  • Meets EN/IEC and DIN standards
  • Rated for 29.6 A current
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bolted - Type Connector With Threaded Pin And Separate Hexagon Nut
Brand
DEHN
Series
Fixed Earthing Points
Application
Earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100).

Mechanical

Material
StSt, Cualloy / gal Sn / HDG steel

Dimensions & Physical Data

Weight
0.1224kg

Documents

IPD Product Catalogue V17
