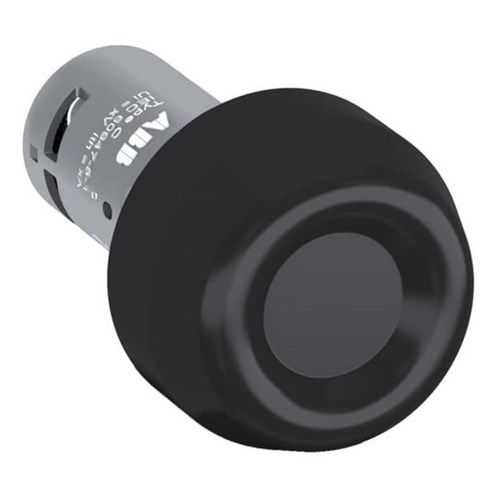

ABB CP6-10B-11 Compact Non-Illuminated Heavy Duty Pushbutton Momentary Black Silicone Rubber Cap 1NO+1NC Screw

Product Code: CP6-10B-11

  • Compact, space-saving design
  • Durable, high dust and water resistance
  • Ideal for quick activation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Compact Heavy Duty Pushbutton
Brand ABB
Ambient Temperature -25 to 70 deg C
Bezel Material Silicone Rubber Cap
Button Colour Black
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 1NO+1NC
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Depth 61 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 37 mm
Illumination Non-Illuminated
Mechanical Life 0.5 million Operations
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Series CP
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.031 kg
Width 37 mm
Wire Stripping Length 6 mm

Description

The Heavy Duty Pushbutton is a compact range product with a black silicone rubber cap. It features 1 normally open (NO) contact and 1 normally closed (NC) contact. This pushbutton is designed to withstand heavy-duty use.
