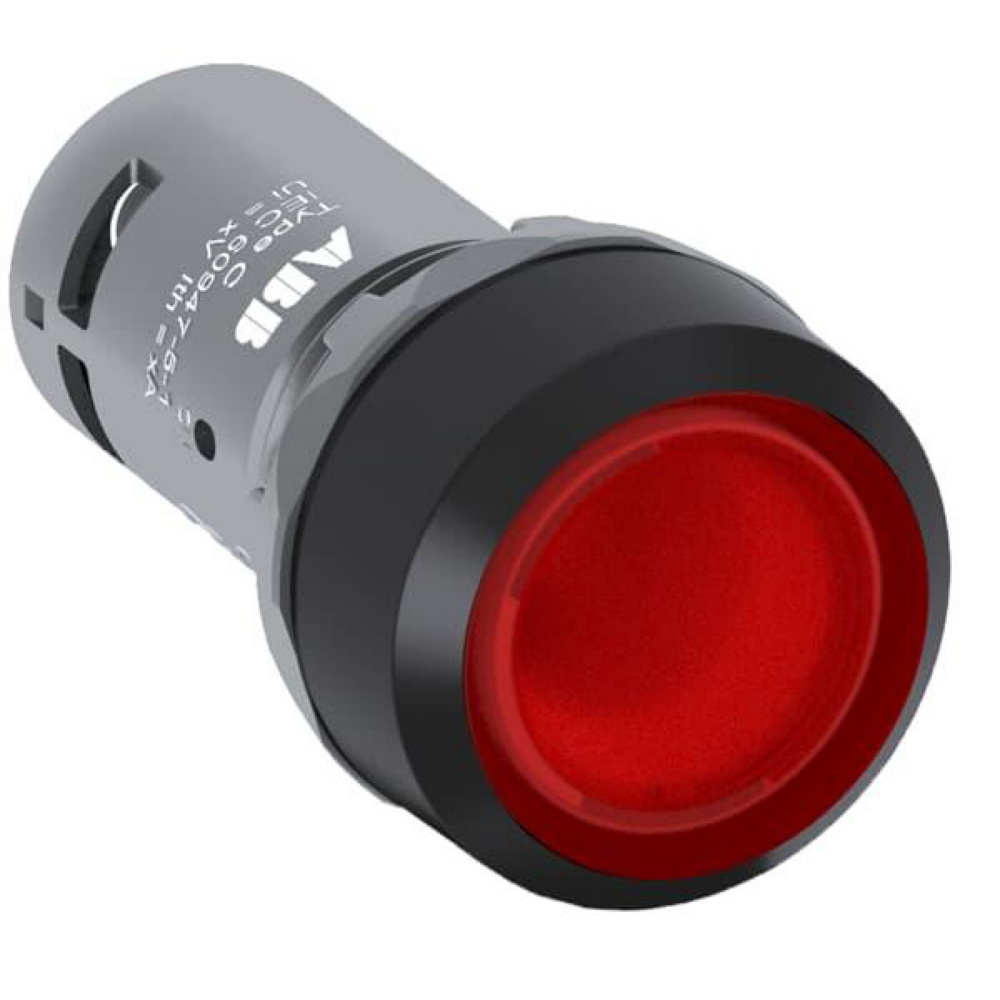

ABB CP1-12R-10 Compact Illuminated Pushbutton Flush Momentary Red 110-130VAC/DC 1NC Screw

Product Code: CP1-12R-10

  • Compact, space-saving design
  • Durable, high dust and water resistance
  • Ideal for quick activation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Compact Pushbutton
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 1NC
Depth 55 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Illuminated
Lamp Colour Red
Lamp Type LED
Mechanical Life 0.5 million Operations
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Rated Voltage 110-130 VAC/DC
Series CP
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.025 kg
Width 30 mm
Wire Stripping Length 6 mm
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
