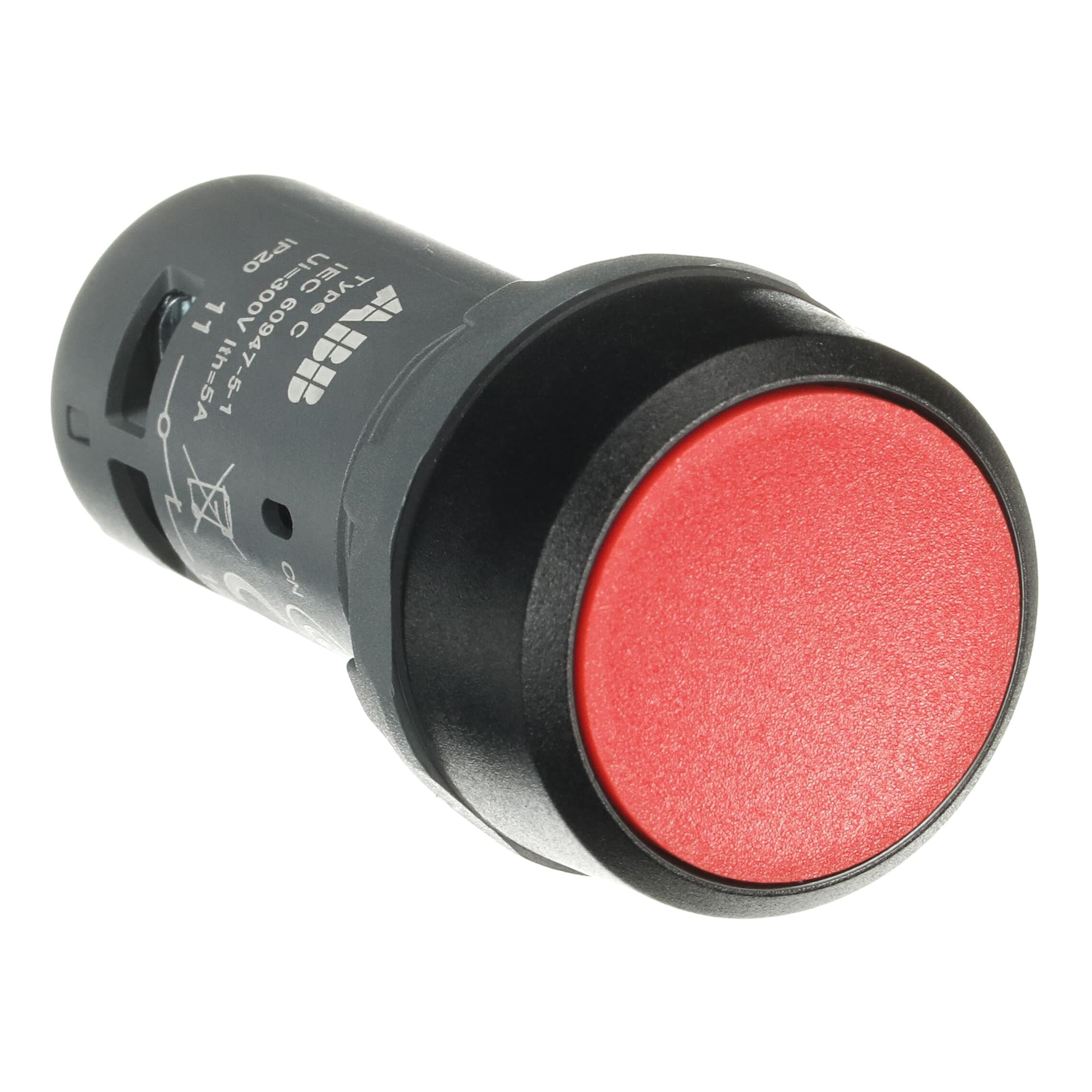

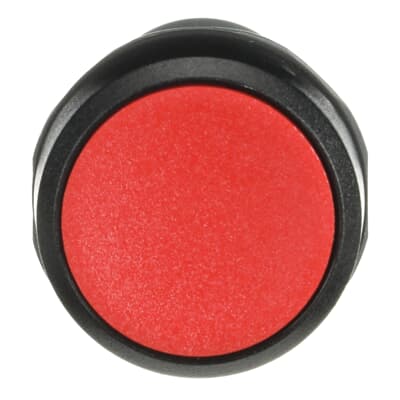

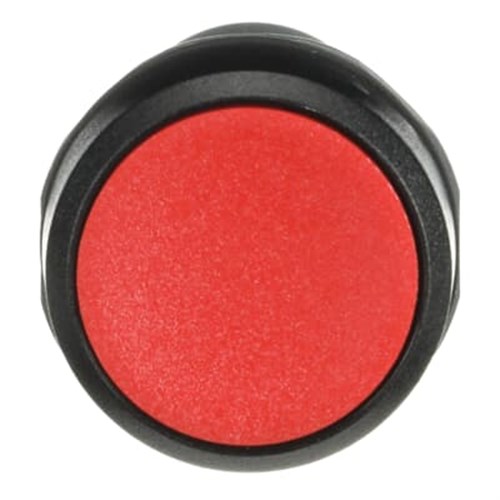

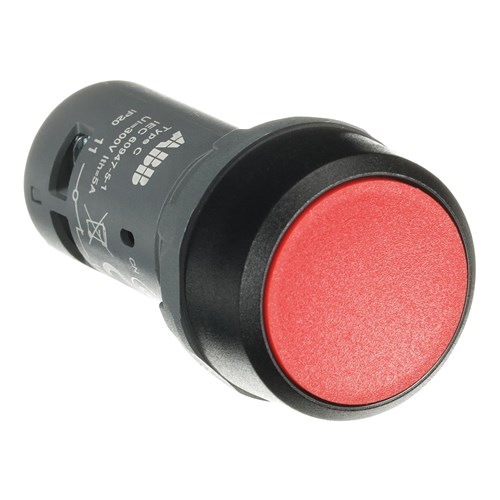

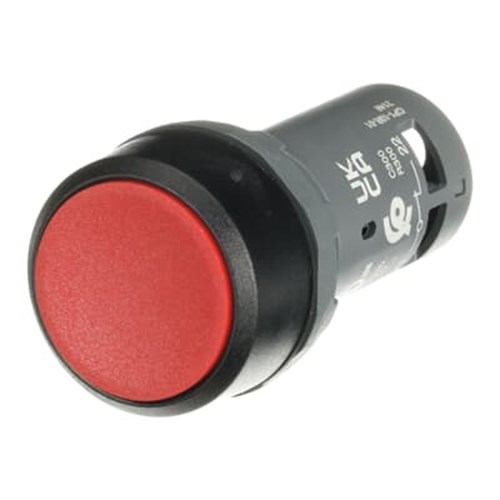

ABB CP1-10R-02 Compact Non-Illuminated Pushbutton Flush Momentary Red 2NC Screw

Product Code: CP1-10R-02

  • Compact, space-saving design
  • Durable, high dust and water resistance
  • Ideal for quick activation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Compact Pushbutton
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Colour Black
Bezel Material Plastic
Button Colour Red
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 2NC
Depth 55 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Series CP
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.022 kg
Width 30 mm
Wire Stripping Length 6 mm
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
