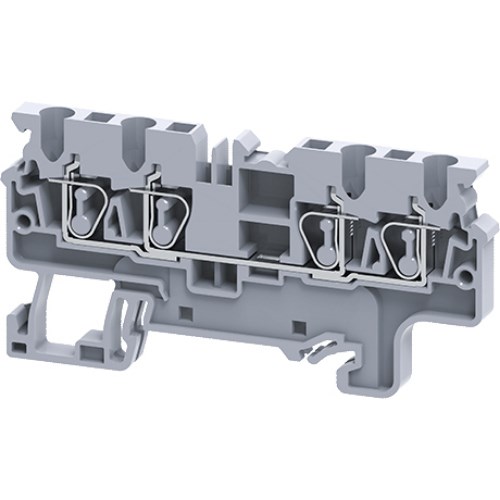

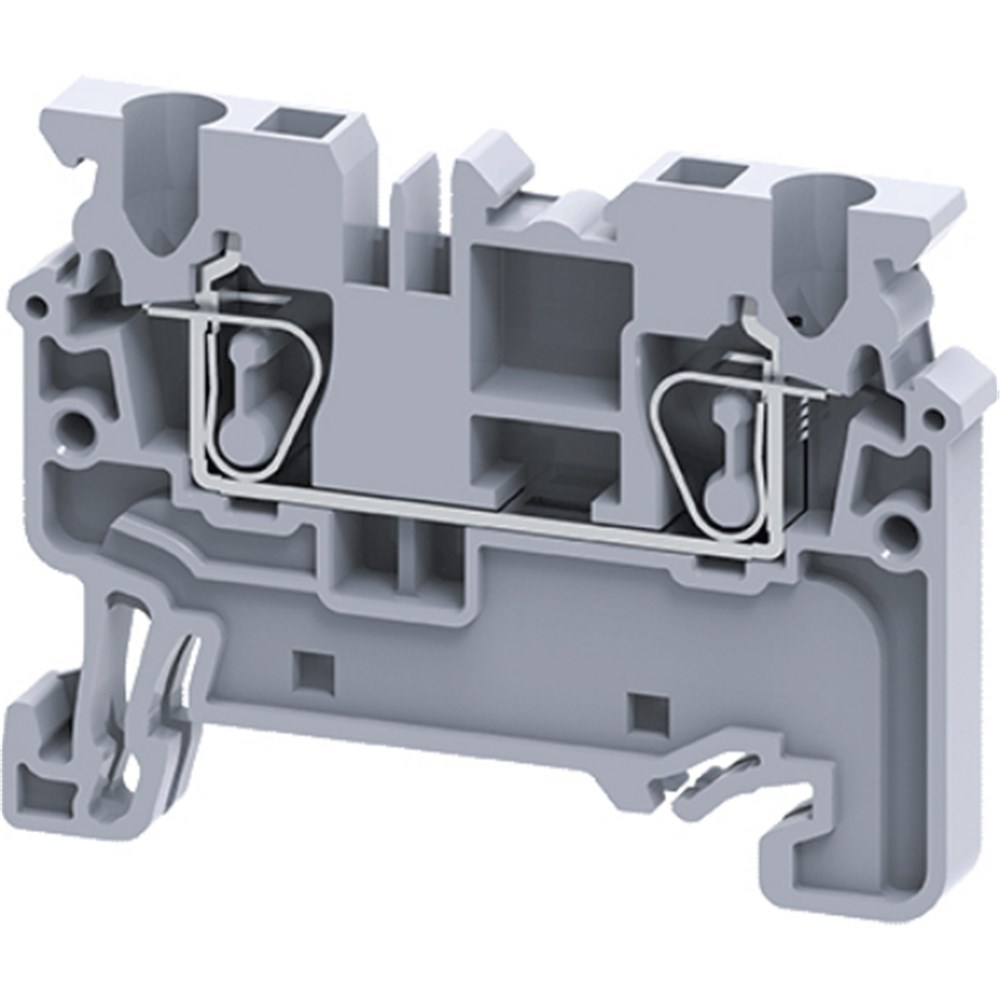

2.5MM Spring Clamp TERMINAL BLOCK - GREY USE CA509/K5 MARKERS

Product Code: CX2.5

  • Compact 5 mm width design
  • Handles up to 24 A current
  • Supports 0.2-2.5 sq-mm cables
  • Rated for 1000 V and 8 kV surge
  • Durable polyamide housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Spring Clamp / Push-in Terminal Block
Brand
Connectwell

Electrical

Rated Current
24 A
Voltage
1000 V

Mechanical

Cable Size
2.5 mm²
Colour
Grey
Material
Polyamide
Mounting
DIN 35/DIN 35-15 Rail

Dimensions & Physical Data

Height
38.2 mm (with DIN 35 x 7.5 mm rail)
Length
50 mm
Weight
5.9 g (excluding packaging)
Width
5 mm

Documents

IPD Product Catalogue V17
