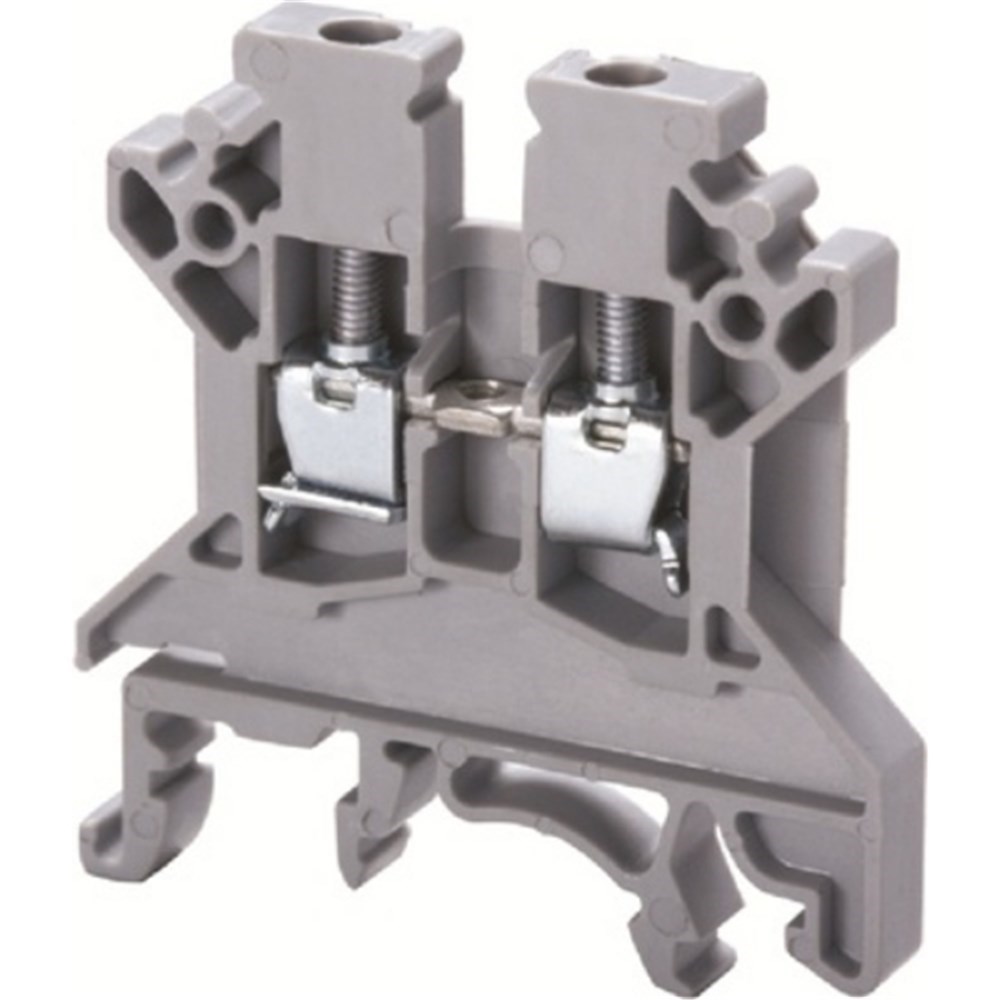

Connectwell CTS4UN Standard Feed Through Block Screw Clamp Feed Through 0.2-4sq-mm 1000V 32A Grey

Product Code: CTS4UN

  • 32A rated feed-through screw clamp
  • Compact 6mm width, grey colour
  • Supports 0.2-4 sq-mm cable cross section
  • Mounts on DIN 32 and DIN 35 rails
  • Durable polyamide housing material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Feed Through Terminal Block
Brand
CONNECTWELL
Series
CTS
Application
Control, automation, instrumentation and power distribution feed-through wiring

Electrical

Function
Feed Through
Rated Current
32 A
Rated Voltage
1000 V
Terminal Type
Screw Clamp Terminal

Mechanical

Cable Cross Section
0.2–4 mm²
Colour
Grey
Material
Polyamide
Mounting
DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque
0.5 Nm

Dimensions & Physical Data

Depth
43 mm
Height
46.2 mm
Weight
7.5 g
Width
6 mm
