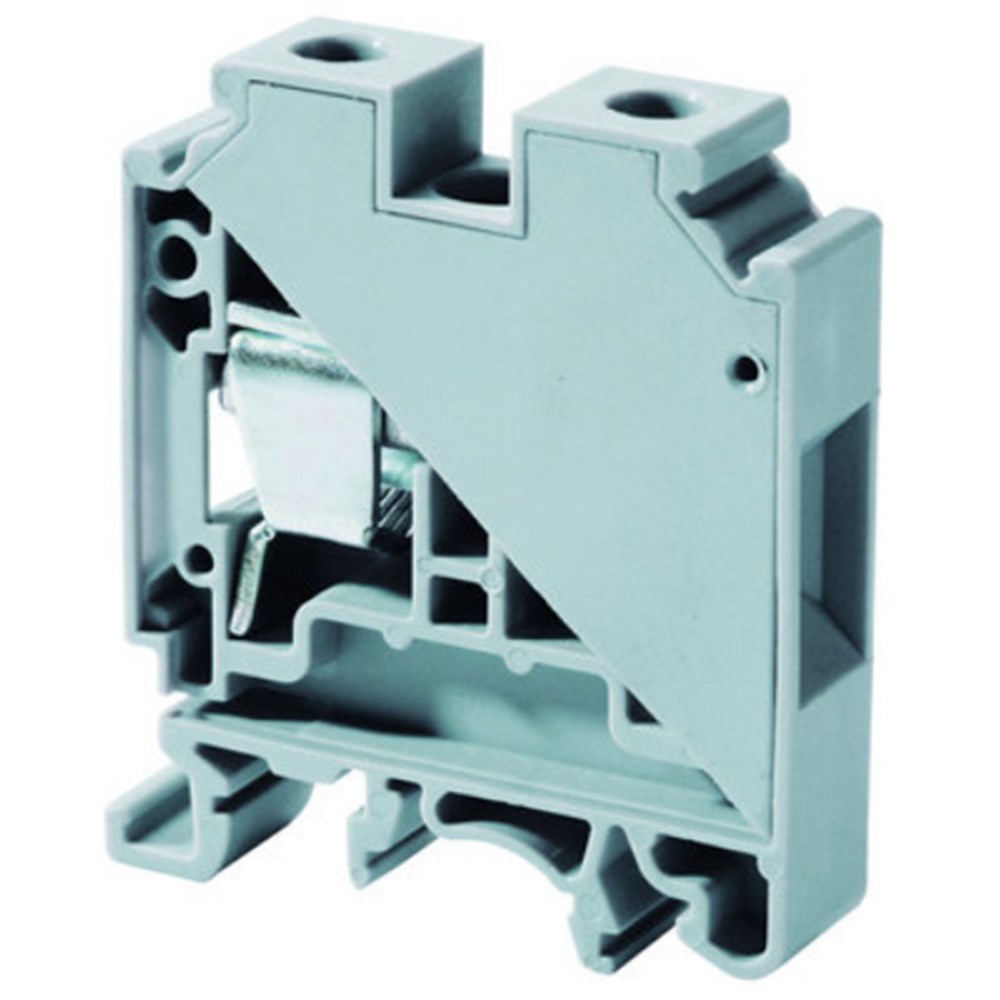

Connectwell CTS25UN Standard Feed Through Terminal Block Screw Clamp Terminal 4-25sq-mm 1000V 101A Grey

Product Code: CTS25UN

  • Suitable for 101 A, 1000 V applications
  • Compact 12 mm width design
  • Fits DIN 32 and DIN 35 rails
  • Handles cable sizes from 4 to 25 sq-mm
  • Screw driver operated with M5 screws
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Feed Through Terminal Block
Brand
CONNECTWELL
Series
CTS
Application
Control, automation, instrumentation and power distribution feed-through wiring

Electrical

Function
Feed Through
Rated Current
101 A
Rated Voltage
1000 V
Terminal Type
Screw Clamp Terminal

Mechanical

Cable Cross Section
4–25 mm²
Colour
Grey
Material
Polyamide
Mounting
DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque
2 Nm

Dimensions & Physical Data

Depth
49 mm
Height
57.2 mm
Width
12 mm

Documents

IPD Product Catalogue V17
