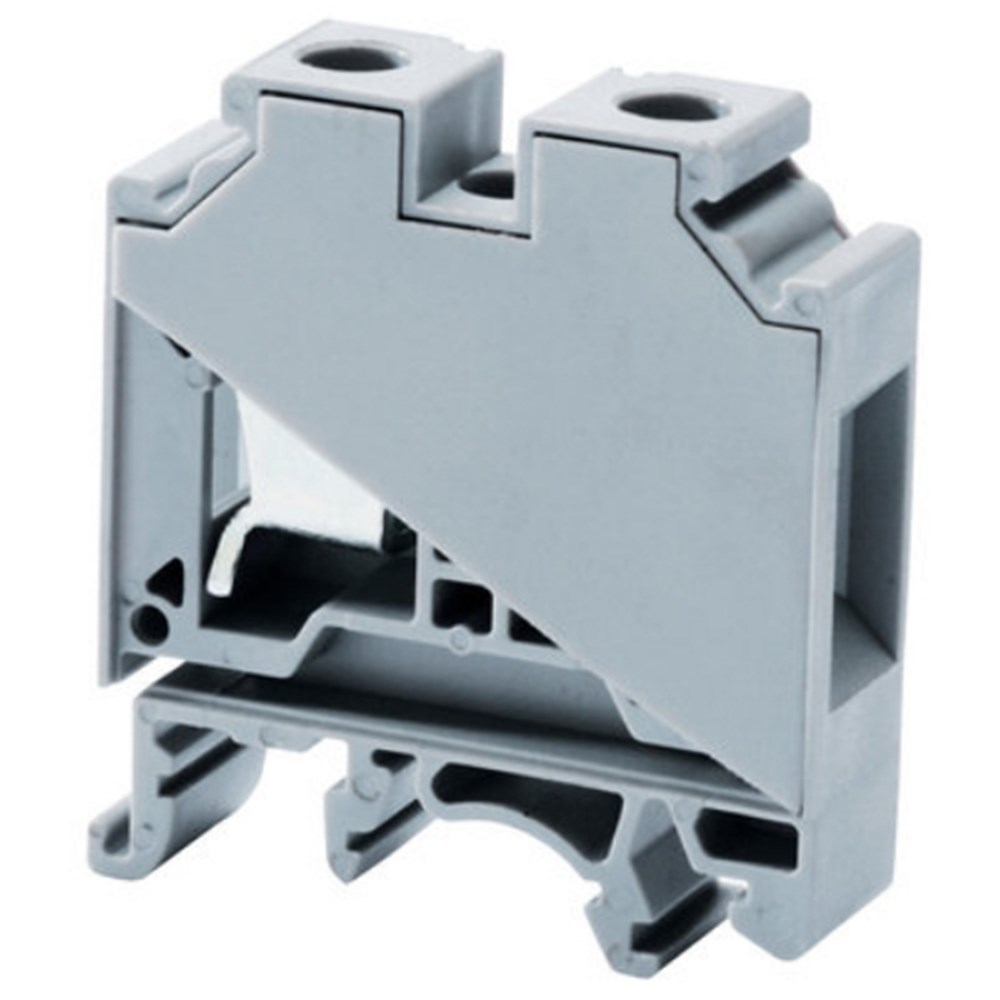

Connectwell CTS16U Feed Through Terminal Block Screw Clamp Terminal 0.2-16sq-mm 1000V 76A Grey

Product Code: CTS16U

  • Supports up to 76 A current
  • Compact 12 mm width design
  • Suitable for 0.2-16 sq-mm cables
  • DIN Rail mounting compatible
  • Rated for up to 1000 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Feed Through Terminal Block
Brand
CONNECTWELL
Series
CTS
Application
Control, automation, instrumentation and power distribution feed-through wiring

Electrical

Function
Feed Through
Rated Current
76 A
Rated Voltage
1000 V
Terminal Type
Screw Clamp Terminal

Mechanical

Cable Cross Section
0.2–16 mm²
Colour
Grey
Material
Polyamide
Mounting
DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque
1.2 Nm

Dimensions & Physical Data

Depth
43 mm
Height
47.8 mm
Width
12 mm

Documents

IPD Product Catalogue V17
