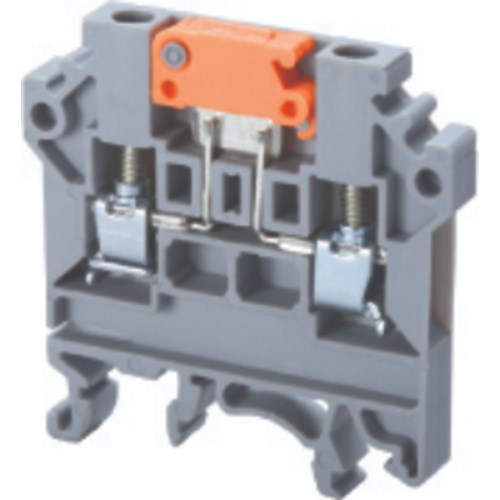

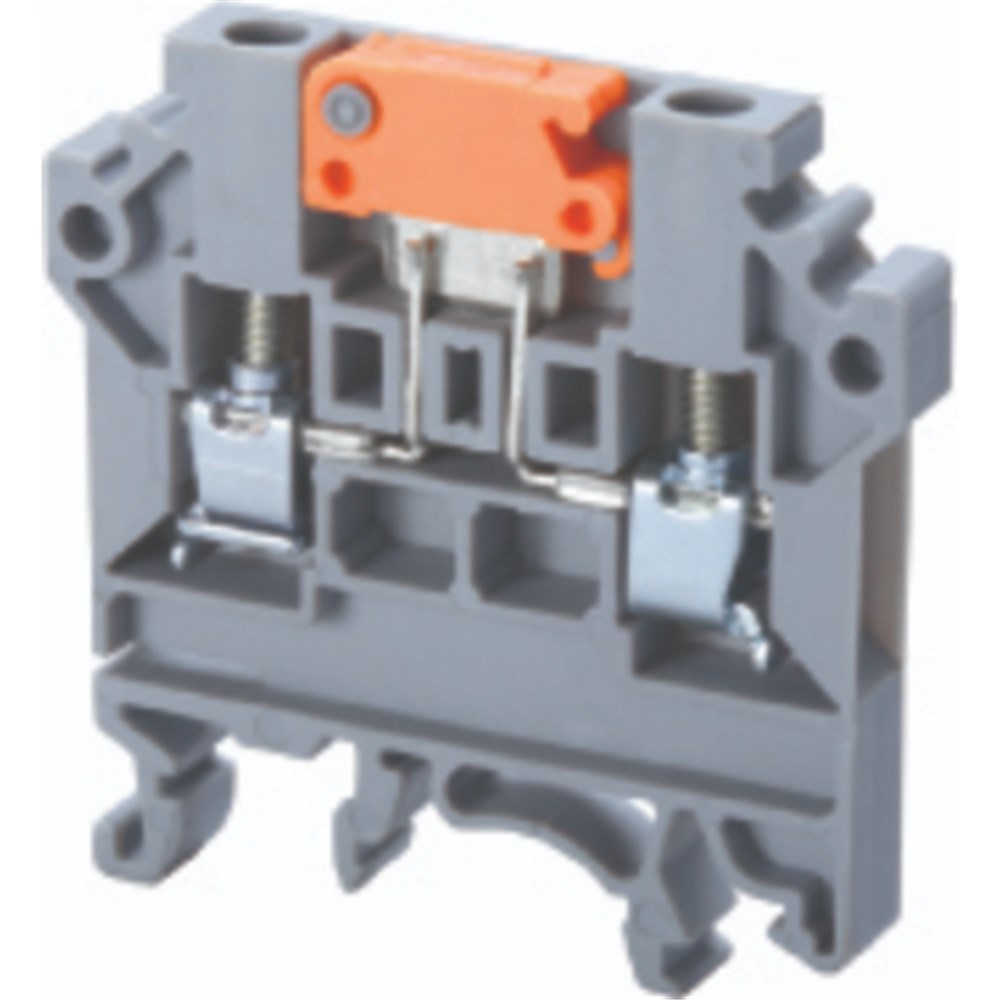

Connectwell CKT4U Disconnect Block Screw Clamp Terminal Sliding Disconnect 0.2-4sq-mm 800V 28A Grey

Product Code: CKT4U

  • Supports up to 28 A current
  • Compact 6 mm width design
  • Grey polyamide housing for durability
  • DIN Rail mounting for easy installation
  • Sliding type disconnect and test function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Disconnect Terminal Block
Brand
CONNECTWELL
Series
CKT
Application
Disconnect and test circuits requiring a sliding disconnect link

Electrical

Function
Sliding Disconnect
Rated Current
28 A
Rated Voltage
800 V
Terminal Type
Screw Clamp Terminal

Mechanical

Cable Cross Section
0.2–4 mm²
Colour
Grey
Material
Polyamide
Mounting
DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque
0.5 Nm

Dimensions & Physical Data

Depth
46.3 mm
Height
48.3 mm
Width
6 mm

Documents

IPD Product Catalogue V17
