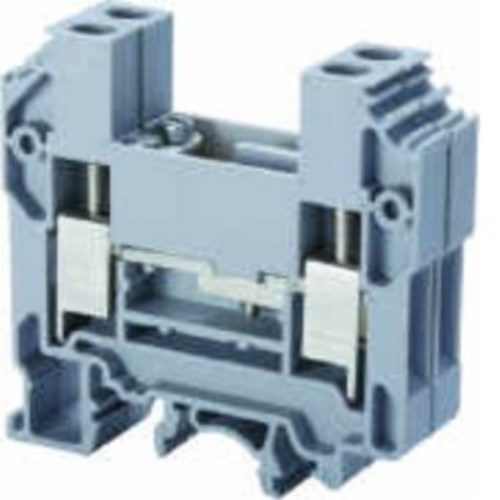

Connectwell CDTTUSH Sliding Disconnect Block Sliding Type Disconnect 1.5-10sq-mm 160V 10A Grey

Product Code: CDTTUSH

  • Sliding type disconnect and test function
  • Compact 6 mm width for space-saving
  • Suitable for 1.5-10 sq-mm cables
  • Side entry cable connection for easy access
  • Complies with CE, cRUus, cCSAus standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Sliding Disconnect Block
Brand
CONNECTWELL
Series
CDTTUSH
Application
Disconnect and test circuits requiring shorting/disconnection functionality

Electrical

Function
Sliding Type Disconnect / Shorting
Rated Current
10 A
Rated Voltage
160 V
Terminal Type
Sliding Disconnect

Mechanical

Cable Cross Section
1.5–10 mm²
Colour
Grey
Material
Polyamide
Mounting
DIN Rail
Tightening Torque
1.2 Nm

Dimensions & Physical Data

Depth
63 mm
Height
58.7 mm
Weight
59.8 g
Width
12 mm
