Specifications

Product Type Double Level Terminal Block	Brand CONNECTWELL	Series CDL
Application Control, automation, instrumentation and power distribution wiring where two circuits are required in one terminal width

Function Double Level Feed Through	Rated Current 32 A	Rated Voltage 800 V
Terminal Type Screw Clamp Terminal

Cable Cross Section 0.2–4 mm²	Colour Grey	Material Polyamide
Mounting DIN 32/DIN 35/DIN 35-15 Rail	Tightening Torque 0.5 Nm

Depth 57 mm	Height 59.5 mm	Weight 13.8 g
Width 6 mm

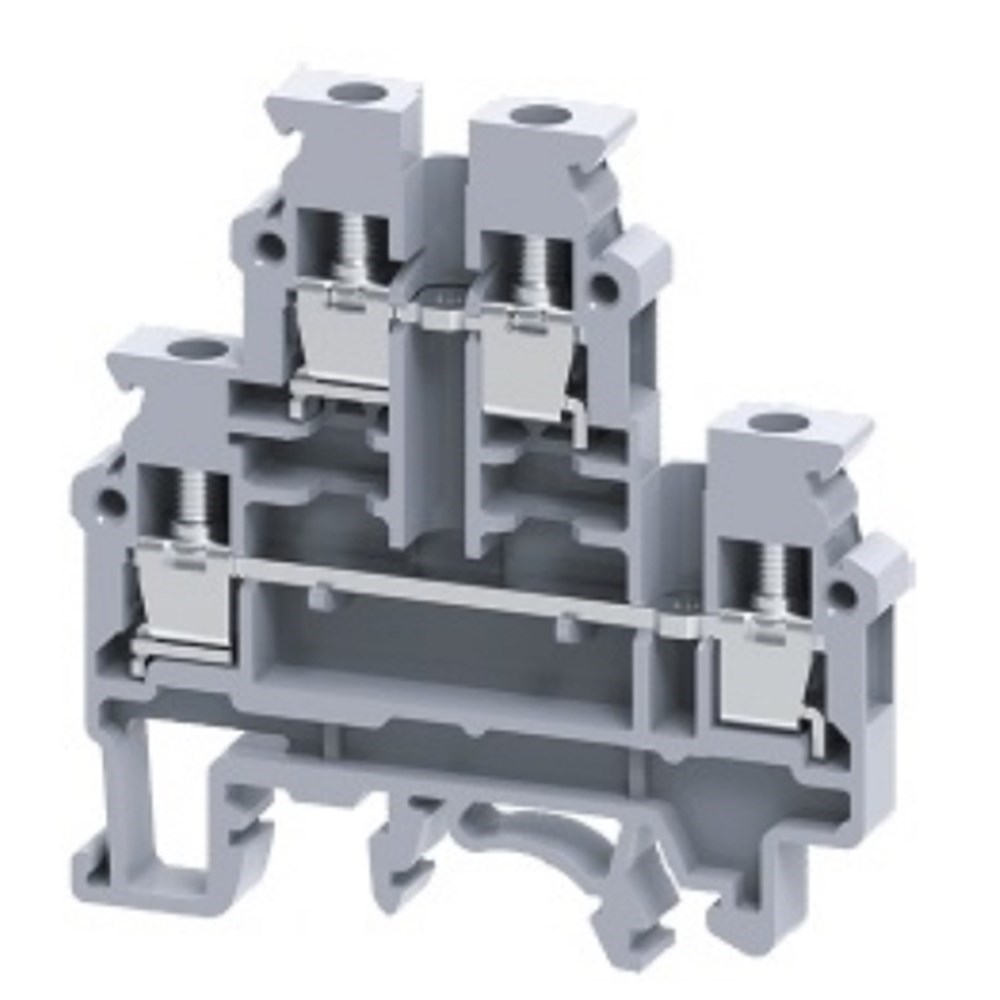

Connectwell CDL4UN Double Level Terminal Block Screw Clamp Terminal Polyamide 0.2-4sq-mm 800V 32A Grey
