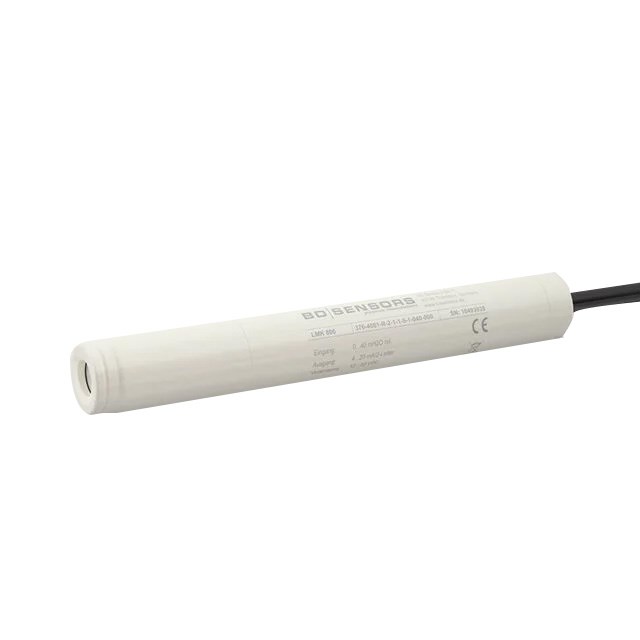

BD Sensors Plastic 3762002R21151100000 Probe LMK 806 100m L Cable 4-20mA Output For: Probes with 5.5 to 10.5mm Cable

Product Code: 3762002R21151100000

  • High accuracy of 0.5% FSO
  • Durable ceramic diaphragm Al2O3 96%
  • Operates in -25 to 80°C range
  • Rated pressure up to 20 bar
  • Fast response time <=10 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Sensor Probe
Brand
BD SENSORS
Series
LMK 806

Electrical

Output Signal
4-20 mA
Electrical Connection
PVC-cable (grey, Ø 7.4 mm)
Input Signal
20 bar

Mechanical

Material
PP-HT

Dimensions & Physical Data

Weight
approx. 100g(without cable)
Cable Length
100m

Environmental

IP Rating
IP68
Ambient Temperature
0°C to 60°C

Documents

IPD Product Catalogue V17
