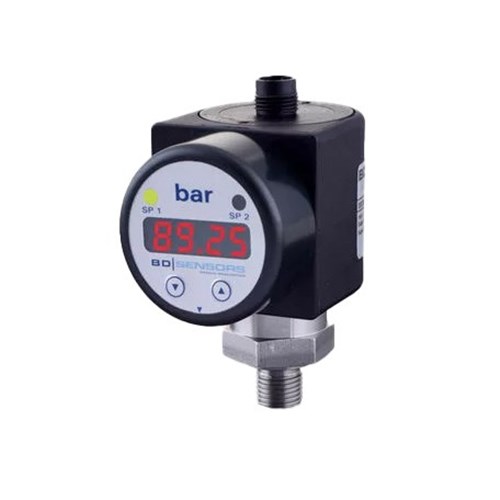

BD Sensors 78R500102GN01N401000 Eletric Pressure Switch 304 Stainless Steel

Product Code: 78R500102GN01N401000

  • 304 stainless steel housing ensures durability
  • IP65 protection for harsh environments
  • Wide temp range: -40 to 125°C
  • High shock resistance: 500 g/1 ms
  • Long life: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Pressure Switch
Brand
BD SENSORS
Series
DS 230

Electrical

Contacts
2
Output Signal
without analogue output
Electrical Connection
male plug M12x1 (5-pin) / plastic version
Input Signal
5 bar

Mechanical

Material
stainless steel 1.4301(304)
Mechanical Connection
1/4" NPT

Dimensions & Physical Data

Weight
approx. 180g

Environmental

IP Rating
IP65
Ambient Temperature
-25°C to 85°C

Documents

IPD Product Catalogue V17
