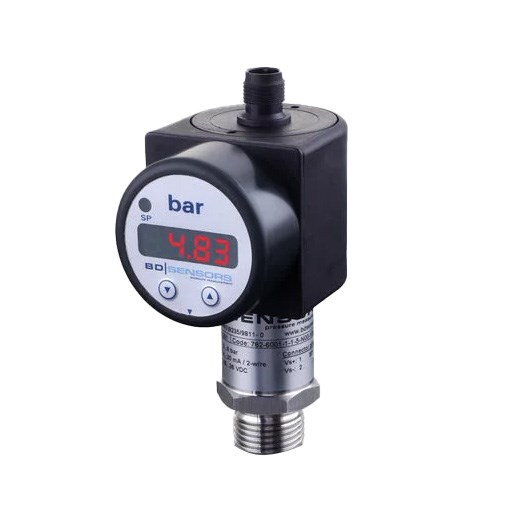

BD Sensors 782X102115N01K007B2000 Eletric Pressure Switch 316L Stainless Steel Ceramic Al2O3 96% Diaphragm

Product Code: 782X102115N01K007B2000

  • 4-20 mA output for reliable signal transmission
  • High accuracy at 0.5% FSO
  • Durable 316L stainless steel housing
  • Wide temp range: -40 to 125°C
  • IP65 rated for robust protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Pressure Switch
Brand
BD SENSORS
Series
DS 201

Electrical

Contacts
1
Output Signal
4 … 20 mA
Electrical Connection
male plug M12x1 (5-pin) / plastic version
Input Signal
-1 - 0 bar

Mechanical

Material
PVDF
Mechanical Connection
G3/4" DIN 3852 with semi-flush sensor

Dimensions & Physical Data

Weight
approx. 200g

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C

Documents

IPD Product Catalogue V17
