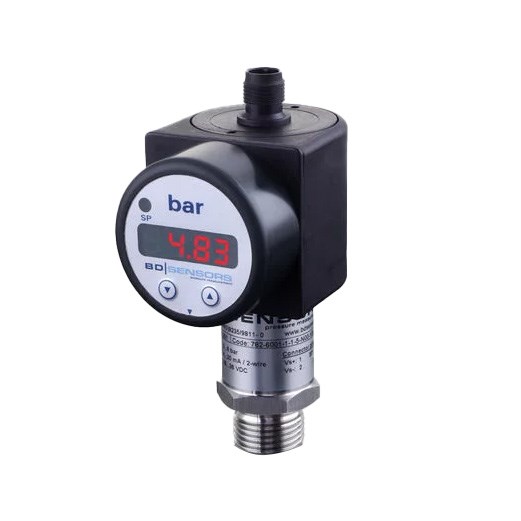

BD Sensors 782X102025TA0H007B2000 Electronic Pressure Switch

Product Code: 782X102025TA0H007B2000

  • Outputs 4-20 mA for precise control
  • High accuracy at 0.5% FSO
  • Robust IP65 protection rating
  • Wide temp range: -40 to 125°C
  • Complies with IEC 60770 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Pressure Switch
Brand
BD SENSORS
Series
DS 201

Electrical

Contacts
2
Output Signal
without analogue output
Input Signal
-1 - 0 bar

Mechanical

Material
PVDF
Mechanical Connection
G1/2" DIN 3852 open pressure port

Dimensions & Physical Data

Weight
approx. 200g

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C
