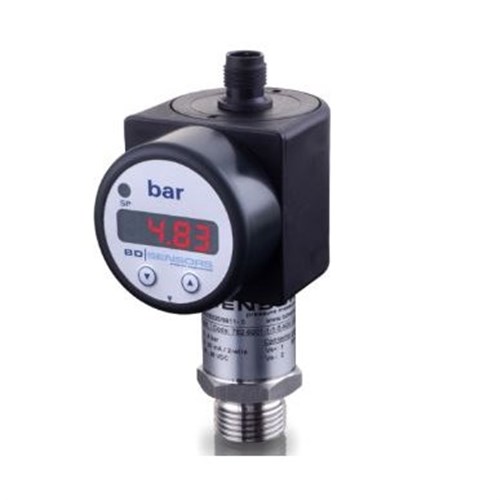

BD Sensors 782JS23715N01K001B2000 Electronic Pressure Switch

Product Code: 782JS23715N01K001B2000

  • Ceramic sensor with 4-20 mA output
  • High accuracy at 0.5% FSO
  • Robust IP65 protection rating
  • Operates from -40 to 125°C
  • Complies with IEC 60770 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Pressure Switches
Brand
BD Sensors
Series
DS 201

Electrical

Contacts
1
Output Signal
4 … 20 mA / 3-wire, adjustable
Electrical Connection
male plug M12x1 (5-pin) / plastic version

Mechanical

Material
PVDF
Mechanical Connection
G3/4" DIN 3852 with semi-flush sensor

Dimensions & Physical Data

Weight
approx. 200 g

Environmental

IP Rating
IP 65
Ambient Temperature
-40 ... 85 °C

Documents

IPD Product Catalogue V17
