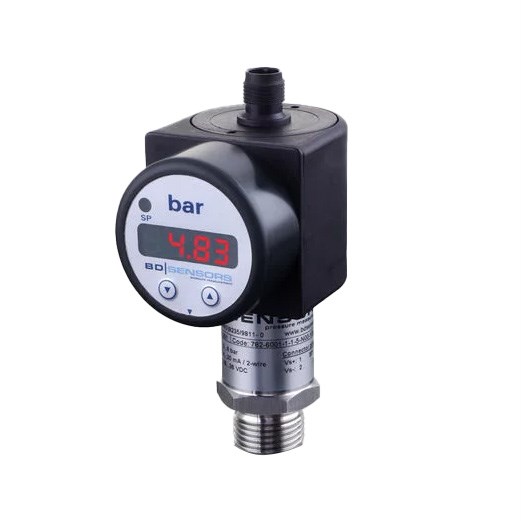

BD Sensors 7826001015N01100112000 Electronic Pressure Switch

Product Code: 7826001015N01100112000

  • 4-20 mA output for precise control
  • High accuracy at 0.5% FSO
  • Robust IP65 protection rating
  • Operates in -40 to 125°C range
  • Complies with IEC 60770 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Pressure Switch
Brand
BD SENSORS
Series
DS 201

Electrical

Contacts
1
Output Signal
without analogue output
Electrical Connection
male plug M12x1 (5-pin) / plastic version
Input Signal
6 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
G1/2" DIN 3852

Dimensions & Physical Data

Weight
approx. 200g

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C

Documents

IPD Product Catalogue V17
