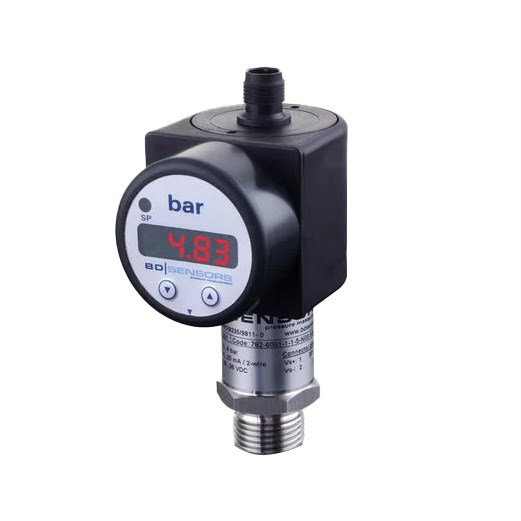

BD Sensors 7824003115N01N00312000 Electronic Pressure Switch

Product Code: 7824003115N01N00312000

  • Output: 4-20 mA for precise measurements
  • High accuracy of 0.5% FSO
  • Robust IP65 protection rating
  • Operates in -40 to 125°C range
  • Compliant with IEC 60770 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Pressure Switch
Brand
BD SENSORS
Series
DS 201

Electrical

Contacts
1
Output Signal
4 … 20 mA
Electrical Connection
male plug M12x1 (5-pin) / plastic version
Input Signal
400 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
1/2" NPT

Dimensions & Physical Data

Weight
approx. 200g

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C

Documents

IPD Product Catalogue V17
