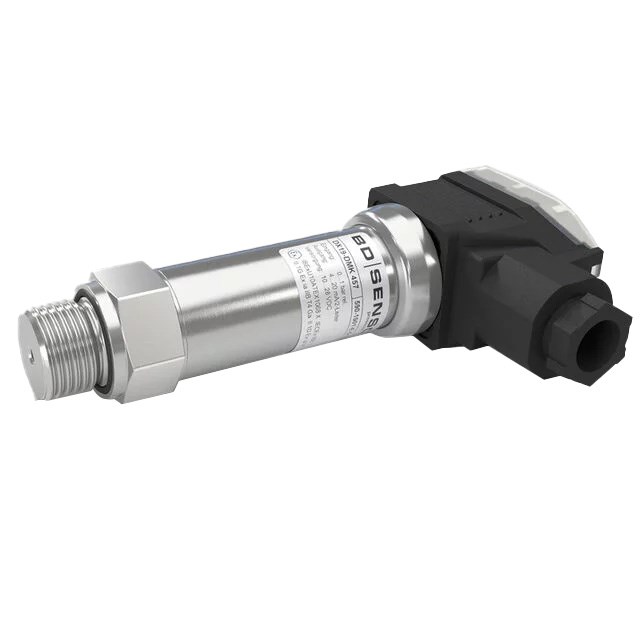

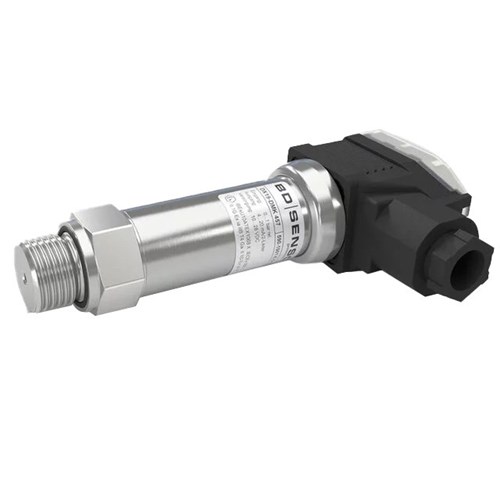

BD Sensors 590100315G103001K2000 Pressure Sensor Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 590100315G103001K2000

  • Ceramic sensor with 4-20 mA output
  • High accuracy at 0.5% FSO
  • Operates from -40 to 125°C
  • Durable with 10 million operations
  • CE, cULus, REACH, RoHS certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD SENSORS
Series
DMK 457

Electrical

Output Signal
4-20 mA
Electrical Connection
male and female plug ISO 4400
Input Signal
100 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
G1/4" DIN 3852

Dimensions & Physical Data

Weight
approx. 140g

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C
