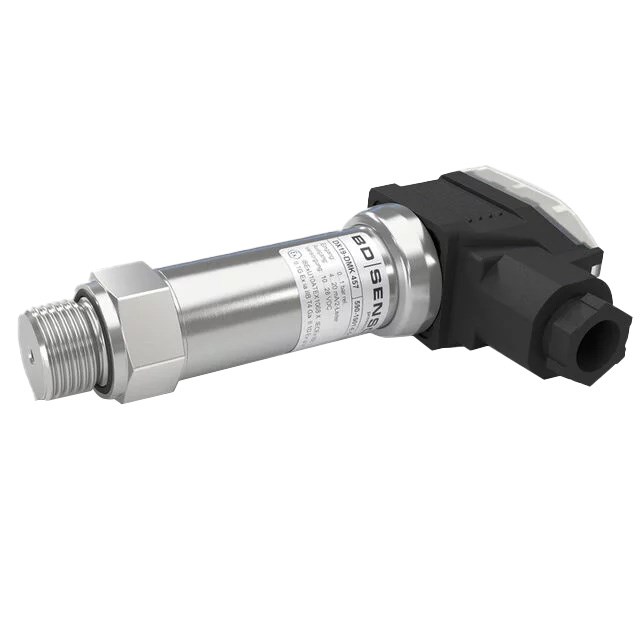

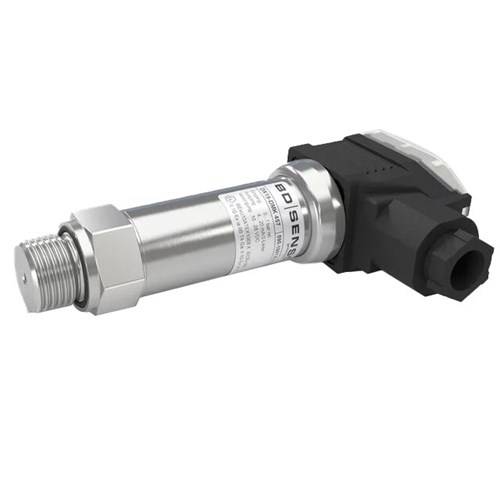

BD Sensors 590100215G10100112000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 590100215G10100112000

  • Accurate 0.5% FSO ceramic sensor
  • Wide temp range: -40 to 125°C
  • Fast response time: <10 ms
  • Durable mechanical life: 10 million ops
  • ABS, CE, IEC, REACH, RoHS certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD SENSORS
Series
DMK 457

Electrical

Output Signal
4-20 mA
Electrical Connection
male and female plug ISO 4400
Input Signal
10 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
G1/2" DIN 3852

Dimensions & Physical Data

Weight
approx. 140g

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C
