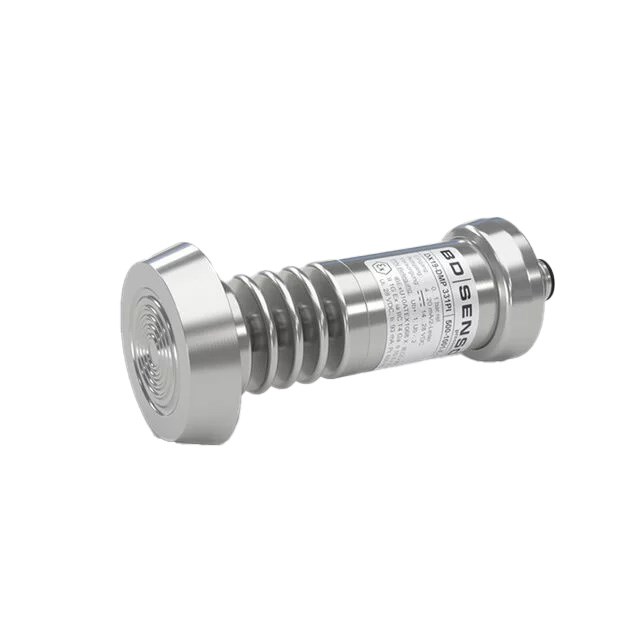

BD Sensors 500400011850C63102211 Industrial Pressure Transmitter 316L Stainless Steel Diaphragm

Product Code: 500400011850C63102211

  • Stainless steel sensor with 4-20 mA output
  • Operates in -40 to 125°C temperature range
  • CE, cULus, REACH, and RoHS approved
  • High shock resistance of 500 g/1 ms
  • Fast response time under 10 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD SENSORS
Series
DMP 331P

Electrical

Output Signal
4-20 mA
Electrical Connection
Compact field housing
Input Signal
0.4 bar

Mechanical

Material
stainless steel1.4404 (316 L)
Mechanical Connection
Clamp DN 50 / 2" (DIN 32676) / 3A

Dimensions & Physical Data

Weight
min. 200 g

Environmental

IP Rating
IP 67
Ambient Temperature
-40 ... 85 °C

Documents

IPD Product Catalogue V17
