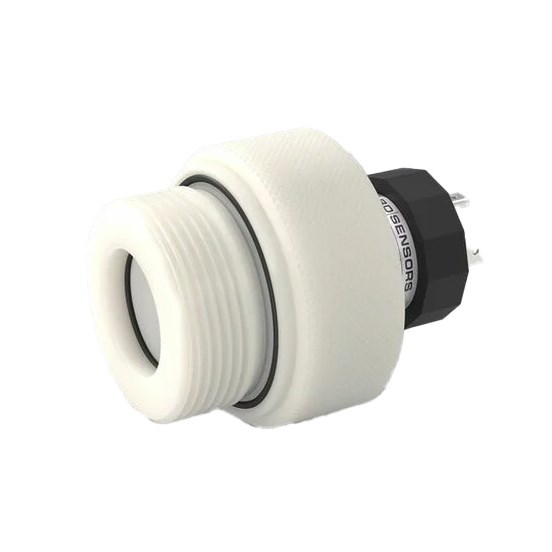

BD Sensors 470400113100M00112000 Screw-In Level Sensor Transmitter LMK 351 4-20mA Output For: Fuel and Oil Viscous

Product Code: 470400113100M00112000

  • High accuracy of 0.35% FSO
  • Wide temp range: -40 to 125°C
  • Rated pressure up to 4 bar
  • Durable ceramic Al2O3 diaphragm
  • CE, cULus, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Screw - In Transmitters
Brand
BD SENSORS
Series
LMK 351

Electrical

Output Signal
4-20 mA
Electrical Connection
male and female plug ISO 4400
Input Signal
4 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
G1 1/2" DIN 3852 with flush sensor

Dimensions & Physical Data

Weight
approx. 200g
Diameter
60mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C

Documents

IPD Product Catalogue V17
