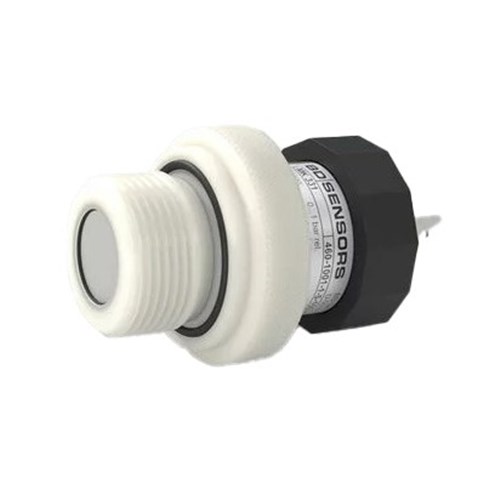

BD Sensors 462160115TR0K007B2000 Screw-In Transmitter LMK 331 4-20mA Output Signal

Product Code: 462160115TR0K007B2000

  • High accuracy of 0.5% FSO
  • Wide temp range: -40 to 125°C
  • Durable ceramic Al2O3 diaphragm
  • Robust mech stability: 10g RMS vibration
  • Quick response time: <=10 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Screw - In Transmitters
Brand
BD SENSORS
Series
LMK 331

Electrical

Output Signal
4-20 mA
Electrical Connection
cable outlet,cable with ventilation tube
Input Signal
1.6 bar

Mechanical

Material
PVDF
Mechanical Connection
G3/4" DIN 3852 with flush sensor

Dimensions & Physical Data

Weight
approx. 150g
Diameter
40mm

Environmental

IP Rating
IP68
Ambient Temperature
-40°C to 85°C
