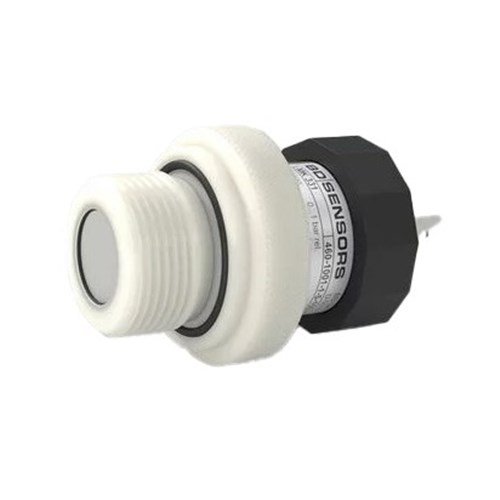

BD Sensors 460160115100K00112000 Screw-In Transmitter LMK 331 4-20mA Output Signal

Product Code: 460160115100K00112000

  • High accuracy of 0.5% FSO
  • Wide temp range: -40 to 125°C
  • Rated pressure up to 2 bar
  • Robust ceramic diaphragm Al2O3 96%
  • Fast response time of <=10 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Screw - In Transmitters
Brand
BD SENSORS
Series
LMK 331

Electrical

Output Signal
4-20 mA
Electrical Connection
male and female plug ISO 4400
Input Signal
1.6 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
G3/4" DIN 3852 with flush sensor

Dimensions & Physical Data

Weight
approx. 150g
Diameter
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 85°C

Documents

IPD Product Catalogue V17
