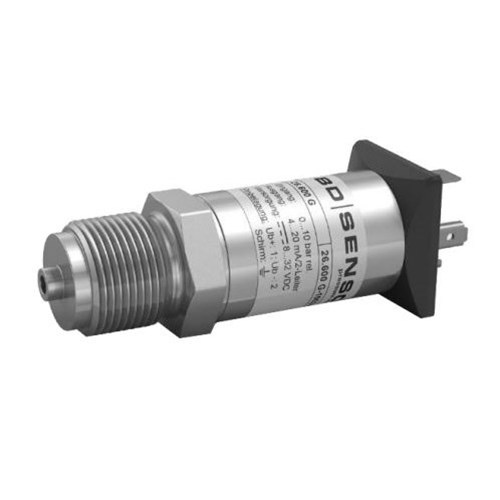

BD Sensors 26600G6001R151003001000 Pressure Transmitter

Product Code: 26600G6001R151003001000

  • 4-20 mA output for reliable signal transmission
  • High accuracy at 0.5% FSO
  • IP65 protection against dust and water
  • Wide temp range: -40 to 125°C
  • Compliant with CE, cULus, IEC 60770, REACH, RoHS
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD Sensors
Series
26.600 G

Electrical

Cable Length
2 m
Output Signal
4 … 20 mA / 2-wire
Electrical Connection
Male and female plug ISO 4400

Mechanical

Material
Stainless steel 1.4301
Mechanical Connection
G1/4" DIN 3852

Dimensions & Physical Data

Weight
approx. 120 g

Environmental

Operating Temperature
-25 … 85 °C
IP Rating
IP65

Documents

IPD Product Catalogue V17
