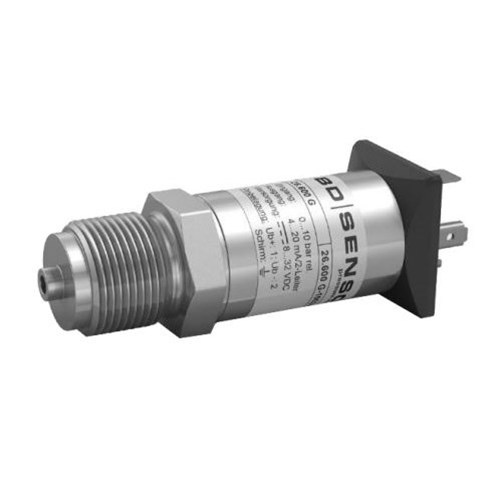

BD Sensors 26600G6001R151002001000 Pressure Transmitter

Product Code: 26600G6001R151002001000

  • Ceramic sensor with 4-20 mA output
  • High accuracy of 0.5% FSO
  • Wide temp range: -40 to 125°C
  • Rated for 6 bar pressure
  • CE, cULus, REACH, RoHS approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD Sensor
Series
26.600 G

Electrical

Output Signal
4-20 mA
Electrical Connection
male and female plug ISO 4400
Input Signal
6 bar

Mechanical

Material
stainless steel 1.4301(304)
Mechanical Connection
G1/2" EN 837

Dimensions & Physical Data

Weight
approx. 120 g

Environmental

IP Rating
IP 65
Ambient Temperature
-25 … 85 °C

Documents

IPD Product Catalogue V17
