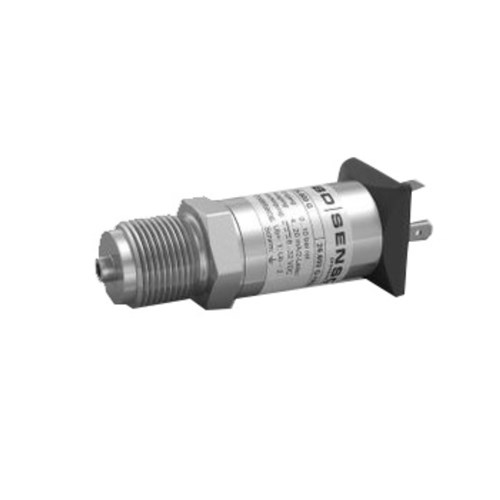

BD Sensors 26600G1602R151003001000 Pressure Transmitter

Product Code: 26600G1602R151003001000

  • Ceramic sensor with 4-20 mA output
  • High accuracy of 0.5% FSO
  • IP65 protection rating
  • Wide temp range: -40 to 125°C
  • Complies with CE, cULus, IEC 60770, REACH, RoHS
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD SENSORS
Series
26.600 G

Electrical

Output Signal
4-20 mA
Electrical Connection
male and female plug ISO 4400
Input Signal
16 bar

Mechanical

Material
stainless steel 1.4301(304)
Mechanical Connection
G1/4" DIN 3852

Dimensions & Physical Data

Weight
approx. 120g

Environmental

IP Rating
IP65
Ambient Temperature
-25°C to 85°C

Documents

IPD Product Catalogue V17
