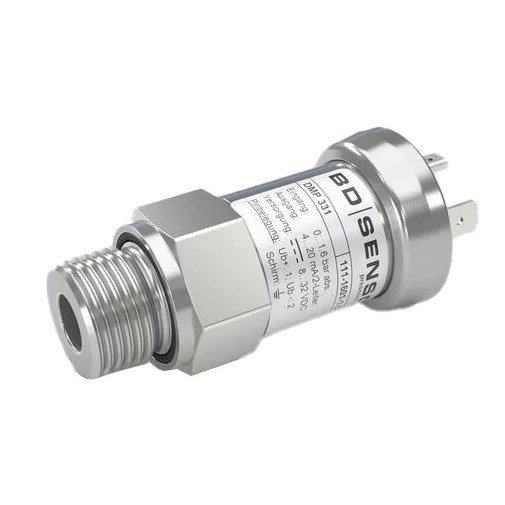

BD Sensors 110100115850F001000 Industrial Pressure Transmitter

Product Code: 110100115850F001000

  • Stainless steel sensor with robust design
  • 4-20 mA output for reliable signal transmission
  • High accuracy: 0.5% FSO under <0.4 bar pressure
  • Wide temp range from -40 to 125°C
  • Certified CE, cULus, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pressure Transmitter
Brand
BD SENSORS
Series
DMP 331

Electrical

Output Signal
4-20mA
Electrical Connection
Compact field housing
Input Signal
1 bar

Mechanical

Material
stainless steel 1.4404 (316L)
Mechanical Connection
G1/2" DIN 3852 with Flush Sensor

Dimensions & Physical Data

Weight
approx. 200 g

Environmental

IP Rating
IP 67
Ambient Temperature
-40 ... 85 °C

Documents

IPD Product Catalogue V17
