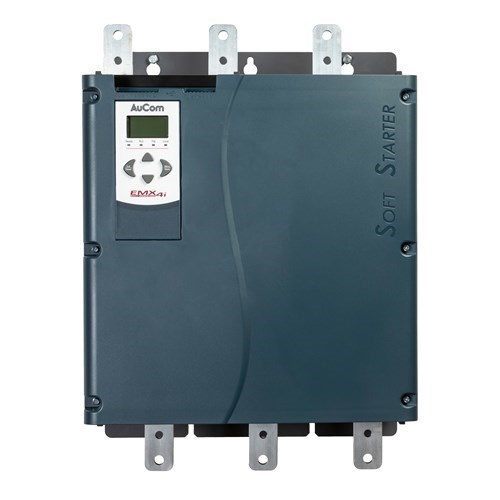

AuCom EMX4i1250BV5C1H Advanced Smart Softstarter 1250A 200-525VAC 110/240VAC IP00

Product Code: EMX4i1250BV5C1H

  • Supports 200-525 VAC, 110/240 VAC
  • Handles up to 1250 A current
  • XLR-8 Adaptive Control feature
  • Offers multiple starting and stop modes
  • Compliant with IEC 60947-4-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
1250A
Rated Current Ie - Normal Duty
1250A
Rated Operational Voltage (Ue)
200V to 525V AC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50Hz to 60Hz

Dimensions & Physical Data

Depth
310mm
Height
618mm
Weight
65kg
Width
447mm

Environmental

IP Rating
IP00
Ambient Temperature
-10°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-24

Description

<p>AuCom EMX4i1250BV5C1H Advanced Smart Softstarter 1250A 200-525VAC 110/240VAC IP00</p>
