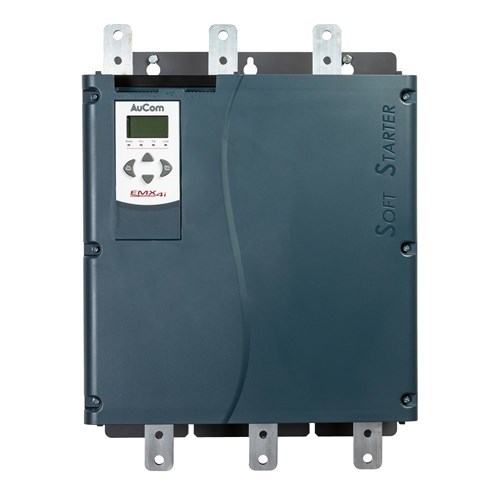

AuCom EMX4i1070BV5C1H Advanced Smart Softstarter 1070A 200-525VAC 110/240VAC IP00

Product Code: EMX4i1070BV5C1H

  • Adaptive Control for smooth operations
  • Handles voltages from 200-525 VAC
  • Rated current capacity of 1070 A
  • Multiple start and stop modes available
  • Compliant with IEC 60947-4-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
1070A
Rated Current Ie - Normal Duty
1070A
Rated Operational Voltage (Ue)
200V to 525V AC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50Hz to 60Hz

Dimensions & Physical Data

Depth
310mm
Height
618mm
Weight
62kg
Width
447mm

Environmental

IP Rating
IP00
Ambient Temperature
-10°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-19

Description

<p>AuCom EMX4i1070BV5C1H Advanced Smart Softstarter 1070A 200-525VAC 110/240VAC IP00</p>
