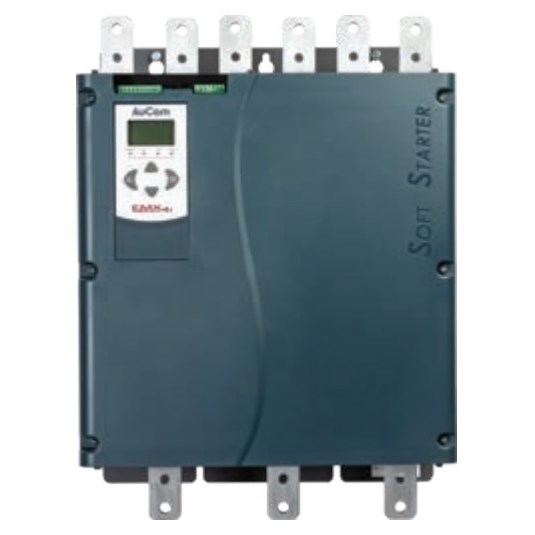

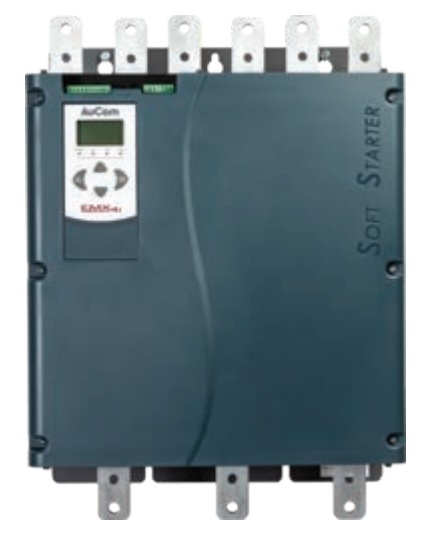

AuCom EMX4i0564EV12C2H Advanced Smart Softstarter 564A 1000/1200VAC 24VAC/DC IP00

Product Code: EMX4i0564EV12C2H

  • Rated for 1000/1200 VAC, 24 VAC/DC
  • Handles up to 564 A current
  • XLR-8 Adaptive Control function
  • Multiple starting & stopping modes
  • Complies with IEC 60947-4-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
24 VAC/DC
Rated Current Ie - Heavy Duty
564 A
Rated Current Ie - Normal Duty
564 A
Rated Operational Voltage (Ue)
1000/1200 VAC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50-60 Hz

Dimensions & Physical Data

Depth
306 mm
Height
662 mm
Weight
63.5 kg
Width
440 mm

Environmental

IP Rating
IP00
Ambient Temperature
-10 °C - 60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-11

Description

<p>AuCom EMX4i0564EV12C2H Advanced Smart Softstarter 564A 1000/1200VAC 24VAC/DC IP00</p>
