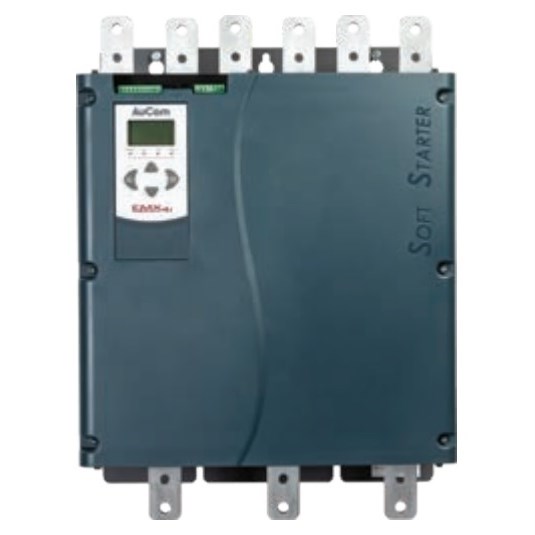

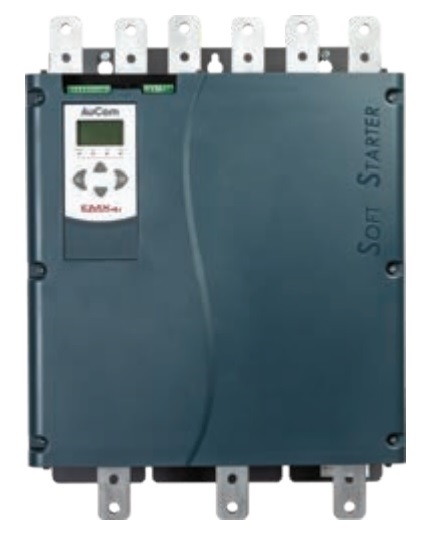

AuCom EMX4i0564EV12C1H Advanced Smart Softstarter 564A 1000/1200VAC 110/240VAC IP00

Product Code: EMX4i0564EV12C1H

  • Suitable for 1000/1200 VAC, 110/240 VAC systems
  • Handles up to 564 A current
  • Compact design: 447x662x306 mm
  • Operates in -10 to 60°C environments
  • Multiple start/stop modes for flexibility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
564 A
Rated Current Ie - Normal Duty
564 A
Rated Operational Voltage (Ue)
1000/1200 VAC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50-60 Hz

Dimensions & Physical Data

Depth
306 mm
Height
662 mm
Weight
63.5 kg
Width
440 mm

Environmental

IP Rating
IP00
Ambient Temperature
-10 °C - 60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-10

Description

<p>AuCom EMX4i0564EV12C1H Advanced Smart Softstarter 564A 1000/1200VAC 110/240VAC IP00</p>

Documents

IPD Product Catalogue V17
