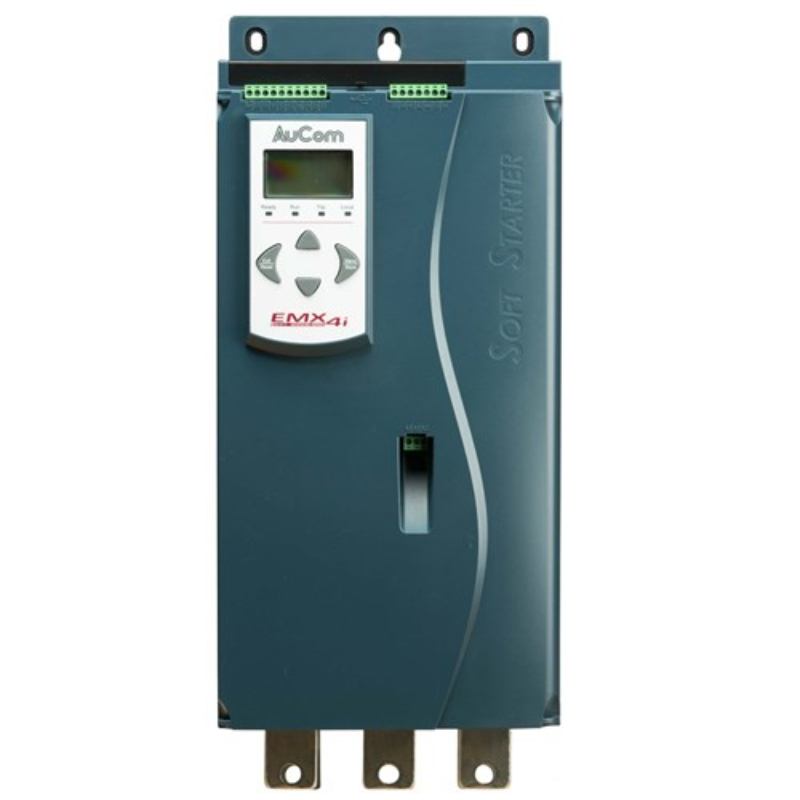

AuCom EMX4i0550BV5C1H Advanced Smart Softstarter 550A 200-525VAC 110/240VAC IP00

Product Code: EMX4i0550BV5C1H

  • Adaptive Control with XLR-8 tech
  • Multiple start modes incl. Kickstart
  • Multiple stop modes incl. Soft Brake
  • Compact size: 216mm x 523mm x 243mm
  • Operates from -10 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Internally bypassed
No. of N/O Contacts
3
No. of Poles (Total)
1 changeover + 3 NO
Rated Control Supply Voltage (Us)
110-120 VAC & 220-240 VAC
Rated Current Ie - Heavy Duty
506
Rated Current Ie - Normal Duty
550
Rated Operational Voltage (Ue)
200 VAC ~ 525 VAC
Built-in Communication
No,Via expansion cards
Control Features
Adaptive Control, Constant Current, Current Ramp,Pump Clean, Reverse direction, Jog,Soft stop methods (TVR, coast, DC brake, soft brake),Scheduled auto start/stop,Protection: overload, current imbalance, voltage, power, thermistor
Rated Frequency
50Hz to 60Hz

Dimensions & Physical Data

Depth
245
Height
523
Weight
19
Width
216

Environmental

IP Rating
IP00
Ambient Temperature
-10°C ~ 60°C, above 40°C with derating

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2, GB 14048.6, Lloyds Marine No 1 Specification, Steel Vessel Rules 2035

Documents

IPD Product Catalogue V17
