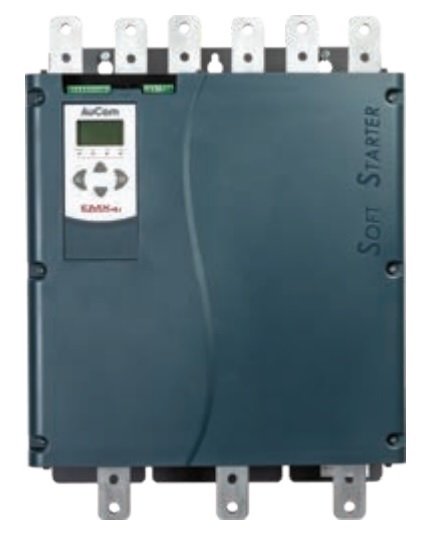

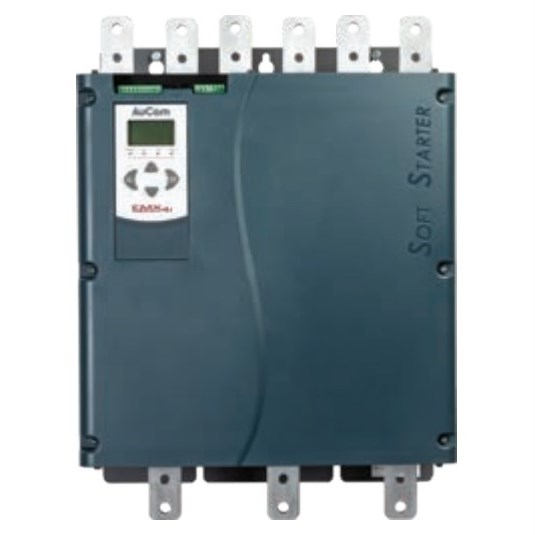

AuCom EMX4i0287EV12C1H Advanced Smart Softstarter 287A 1000/1200VAC 110/240VAC IP00

Product Code: EMX4i0287EV12C1H

  • Advanced Smart EMX4i series for efficient control
  • Supports 1000/1200 VAC and 110/240 VAC
  • Offers multiple starting and stopping modes
  • Operates in temperatures from -10 to 60°C
  • Complies with IEC 60947-4-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
110/240 VAC
Rated Current Ie - Heavy Duty
287 A
Rated Current Ie - Normal Duty
287 A
Rated Operational Voltage (Ue)
1000/1200 VAC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50-60 Hz

Dimensions & Physical Data

Depth
306 mm
Height
662 mm
Weight
62 kg
Width
440 mm

Environmental

IP Rating
IP00
Ambient Temperature
-10 °C - 60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-5

Description

<p>AuCom EMX4i0287EV12C1H Advanced Smart Softstarter 287A 1000/1200VAC 110/240VAC IP00</p>

Documents

IPD Product Catalogue V17
