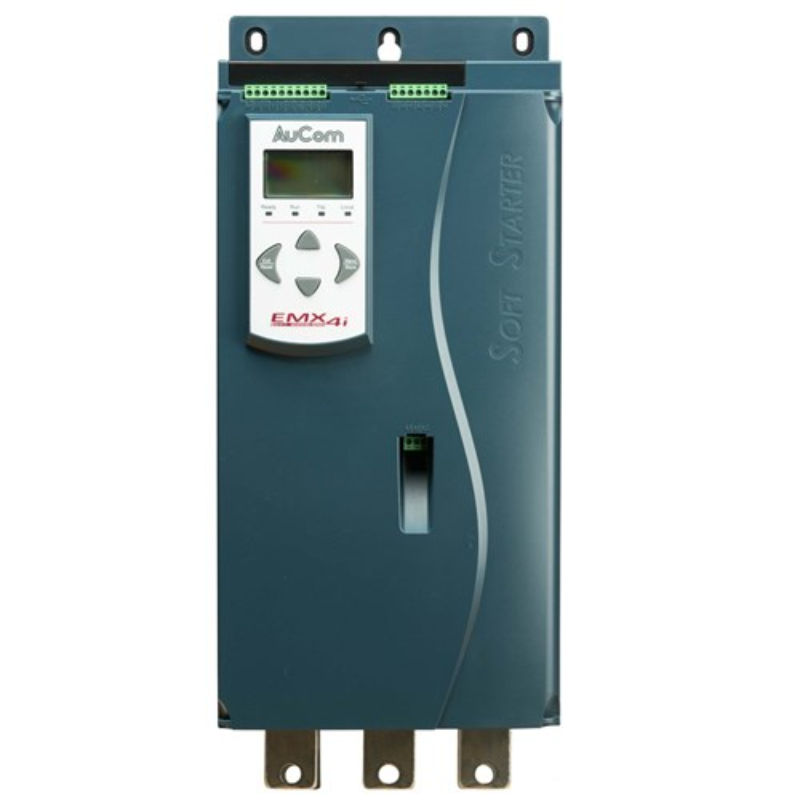

AuCom EMX4i0229BV5C2H Advanced Smart Softstarter 229A 200-525VAC 24VAC/DC IP00

Product Code: EMX4i0229BV5C2H

  • Supports 200-525 VAC, 24 VAC/DC
  • Handles up to 229 A current
  • IP00 protection rating
  • XLR-8 Adaptive Control feature
  • Multiple start/stop modes for flexibility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
No
Rated Control Supply Voltage (Us)
24V AC/DC
Rated Current Ie - Heavy Duty
229A
Rated Current Ie - Normal Duty
229A
Rated Operational Voltage (Ue)
200V to 525V AC
Control Features
Current Ramp, Voltage Ramp, Adaptive Control (Torque control), Kick Start
Rated Frequency
50Hz to 60Hz

Dimensions & Physical Data

Depth
245mm
Height
495mm
Weight
12.7kg
Width
216mm

Environmental

IP Rating
IP00
Ambient Temperature
-10°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2/ GB 14048.6 / C22.2 No. 60947-4-2/ 60947-4-4

Description

<p>AuCom EMX4i0229BV5C2H Advanced Smart Softstarter 229A 200-525VAC 24VAC/DC IP00</p>
