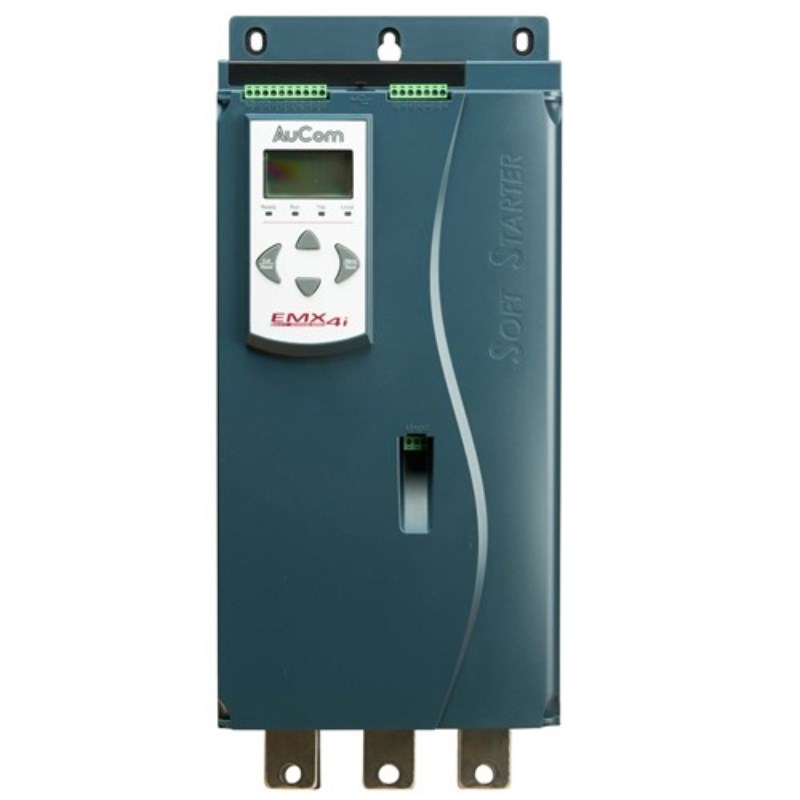

AuCom EMX4i0229BV5C1H Advanced Smart Softstarter 229A 200-525VAC 110/240VAC IP00

Product Code: EMX4i0229BV5C1H

  • Supports 200-525 VAC & 110/240 VAC
  • Rated current of 229 A
  • XLR-8 Adaptive Control for efficiency
  • Multiple starting modes incl. Kickstart
  • Various stop modes incl. DC Brake
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
AuCom

Electrical

Built-in Bypass
Internally bypassed
No. of N/O Contacts
3
No. of Poles (Total)
1 changeover + 3 NO
Rated Control Supply Voltage (Us)
110-120 VAC & 220-240 VAC
Rated Current Ie - Heavy Duty
187
Rated Current Ie - Normal Duty
229
Rated Operational Voltage (Ue)
200 VAC ~ 525 VAC
Built-in Communication
No,Via expansion cards
Control Features
Adaptive Control, Constant Current, Current Ramp,Pump Clean, Reverse direction, Jog,Soft stop methods (TVR, coast, DC brake, soft brake),Scheduled auto start/stop,Protection: overload, current imbalance, voltage, power, thermistor
Rated Frequency
50 Hz to 60 Hz

Dimensions & Physical Data

Depth
245
Height
495
Weight
12.7
Width
216

Environmental

IP Rating
IP00
Ambient Temperature
-10 °C ~ 60 °C, above 40 °C with derating

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-2,GB 14048.6,Lloyds Marine No 1 Specification,Steel Vessel Rules 2027

Documents

IPD Product Catalogue V17
